How to configure AFDD ( Arc fault Detection Device) in Ecostruxure power design-Ecodial?

In Ecodial, Below are the steps to configure AFDD.
Step-1

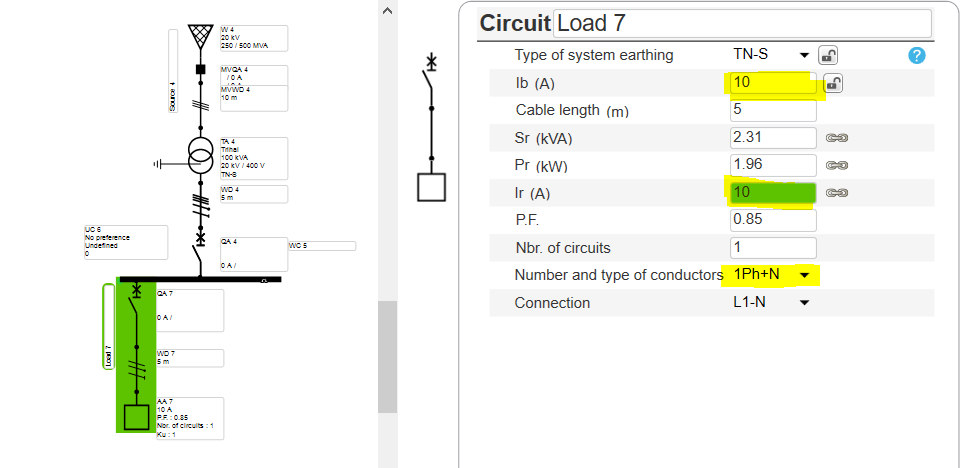

• Create the network
• Ensure that the AFD is getting used in 50HZ & Single phase network and up to 25A (NL) & 40A (FR) only for final loads

Step-2

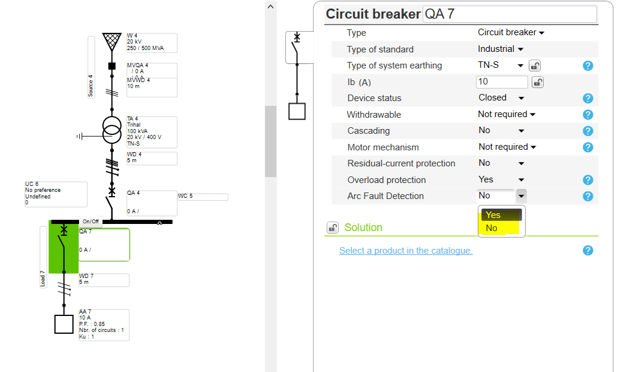

• Select the Circuit breaker in the Feeder
• Enable the AFD

Step-3

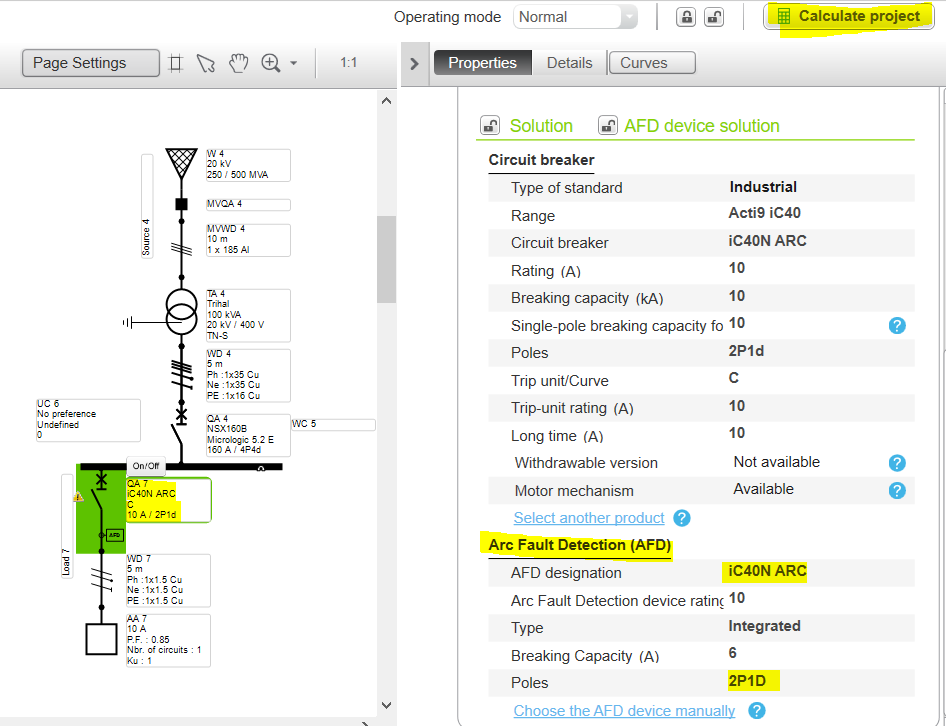

• Run the calculation for the automatic selection of the AFD

Step 4

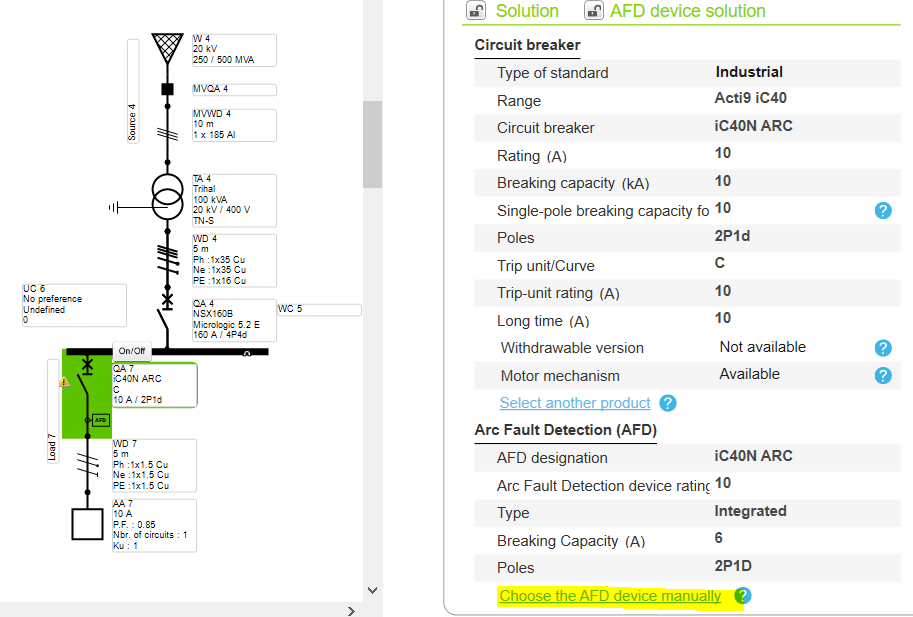

• For manual selection of AFD, Click on it

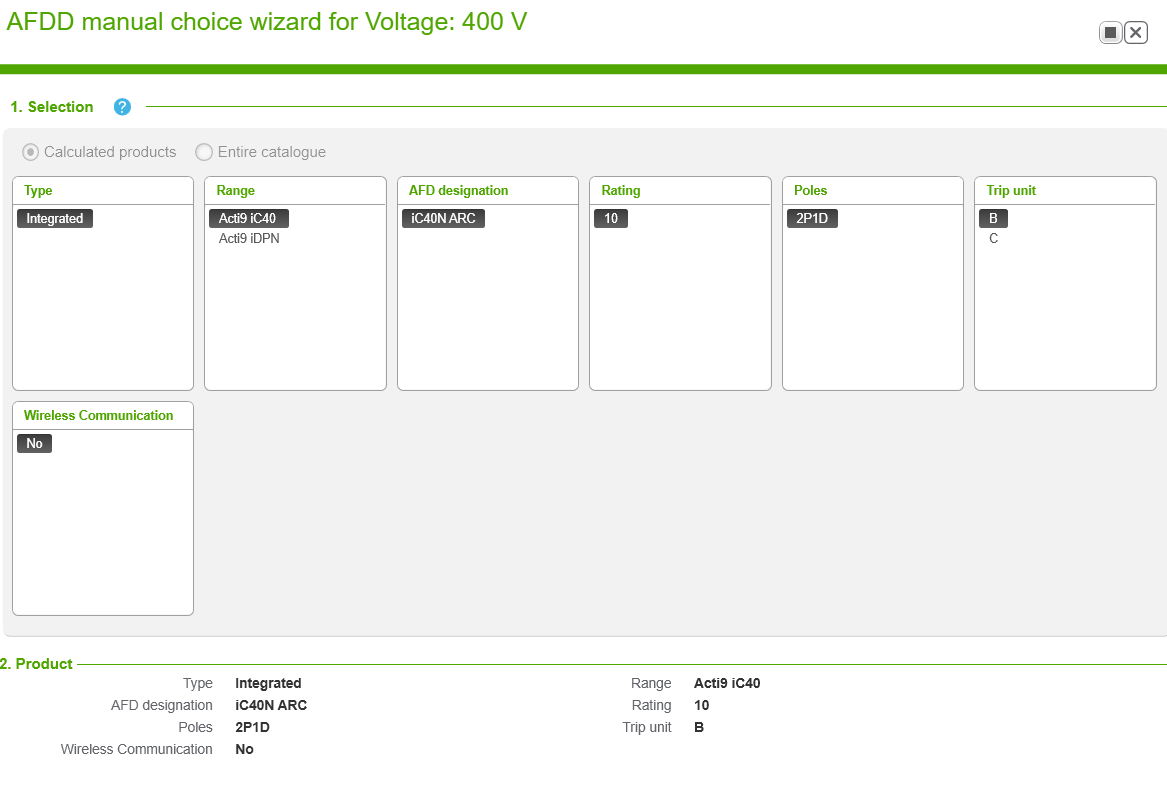

• Select AFD selection tab for more options

Step 5

• Check the specification and validate as per requirement

Step 6

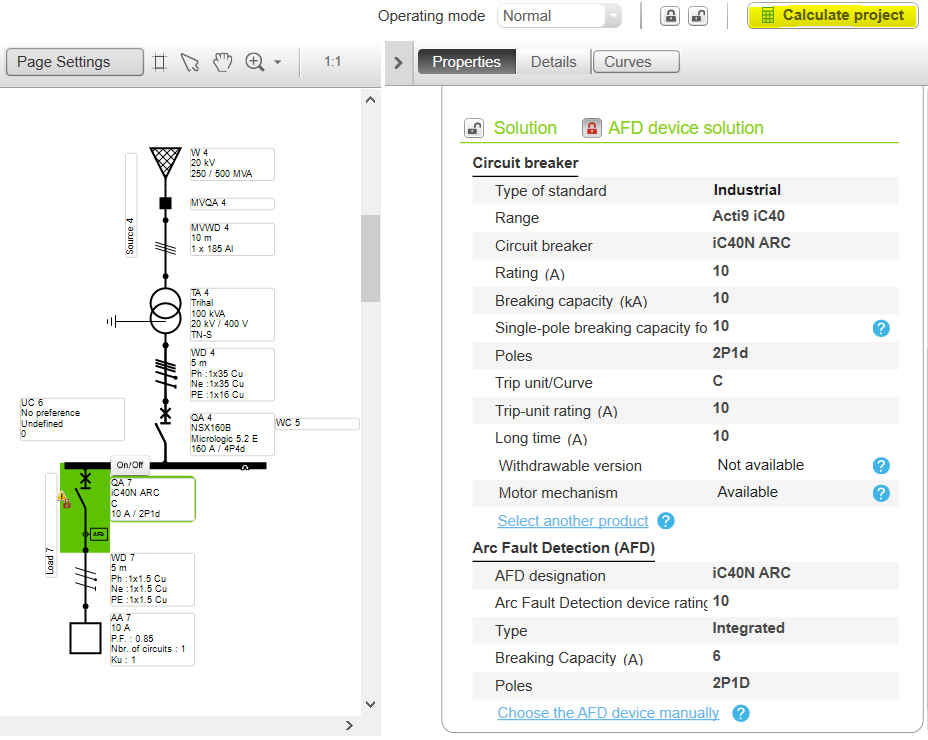

• Run the calculation

Step 7

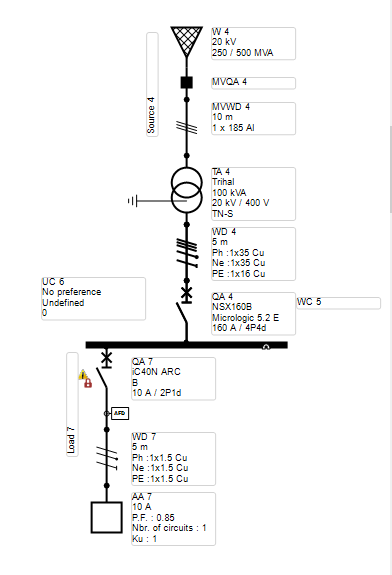

• The Feeder is successfully incorporated with AFDD.
