A9TDFD616
[In] rated current:
Environmental Data
Total lifecycle Carbon footprint
69
Use Better
Packaging made with recycled cardboard
Yes
Use Again
Take-back
No

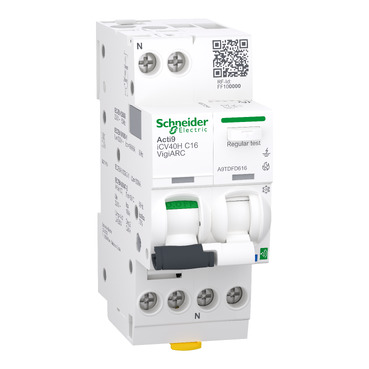

This Acti9 Active iCV40 ARC product is an arc fault detection RCBO. It is a 1P+N with 1 protected pole, 16A In rated current and C tripping curve. The earth leakage protection class is A-SI type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The rated short circuit breaking capacity goes up to 10000A at 230VAC conforming to EN/IEC 61009-2-1 standard and 10kA at 230VAC conforming to EN/IEC60947-2. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The Acti9 Active products communicate with the gateway EcoStruxure Panel Server Entry, Universal and Advanced. Its pre alarming system can prevent any overload, earth leakage and overvoltage. It can also measure the voltage, the current and the power. Its 2 unique VisiTrip indicators reduce intervention time by showing the faulty circuit and identifying quickly the type of default. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 250VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 2. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D)73mm. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. This product is compliant with EN/IEC 60898-1, EN/IEC 60947-2, EN/IEC 62606, EN/IEC 61009-1 and EN/IEC 61009-2-1 standard.
| Range | Acti9 |
|---|---|
| Product name | Acti9 Active iCV40 ARC |
| Product or component type | Active arc fault detection RCBO |
| Device short name | iCV40H ARC |
| Product specific application | Arc fault detection |
| Standards | EN/IEC 62606 EN/IEC 61009-1 EN/IEC 60947-2 EN/IEC 61009-2-1 BS EN 62606 |
| Poles description | 1P + N |
| Number of protected poles | 1 |
| Curve code | C |
| Breaking capacity code | H |
| Breaking capacity | 10000 A Icn at 230 V AC 50 Hz conforming to IEC 61009-2-1 10 kA Icu at 230 V AC 50 Hz conforming to EN/IEC 60947-2 |
| Rated breaking and making capacity | Idm 3000 A at 230 V AC 50 Hz conforming to IEC 61009-2-1 |
| Neutral position | Left |
| Network type | AC |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type A-SI (Super Immunised) |
| Electrical data recording | Date and time Maintenance indicators |
| Concentrator compatibility | EcoStruxure Panel Server Advanced EcoStruxure Panel Server Entry EcoStruxure Panel Server Universal |
| Event management | Overvoltage Earth leakage Overload |
| Type of measurement | Voltage Active power Current Power factor |
| Accuracy | Voltage: +/- 2 % Current: +/- 2 % Power: +/- 5 % |
| Suitability for isolation | Yes |
| Residual current tripping technology | Voltage independent |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Integrated |
| [In] rated current | 16 A |
|---|---|
| Network frequency | 50 Hz |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Device location in system | Outgoer |
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 7500 A AC 50 Hz conforming to IEC 61009-2-1 7.5 kA AC 50 Hz conforming to IEC 60947 |
| Limitation class | 3 |
| [Ui] rated insulation voltage | 250 V AC 50 Hz between phase and neutral |
| Threshold tripping voltage | 275 V for +/- 5 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON, OFF, fault trip LED arc fault diagnostic |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Colour | White (RAL 9003) |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles 230 V AC 50 Hz |
| Overvoltage category | III |
| Locking options description | Padlocking device |
| cable entry | Top and bottom |
| Connections - terminals | Tunnel type terminal 1…16 mm² rigid Tunnel type terminal 1…10 mm² flexible |
| Wire stripping length | 14 mm |
| Tightening torque | 2 N.m |
| Comb busbar and distribution block compatibility | YES |
| 9 mm pitches | 4 |
| Height | 91 mm |
| Width | 36 mm |
| Depth | 73 mm |
| Net weight | 220 g |
| Total power losses | 3.408 W |
| Power losses per pole | 2.65 W |
| Power losses on neutral | 0.763 W |
| Earth-leakage sensitivity | 30 mA |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 2 conforming to EN/IEC 62606 |
| Tropicalisation | Severity B conforming to IEC 60068-2-30 for 28 d |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -40…80 °C |
| Product certifications | UKCA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.400 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 11.400 cm |
| Package 1 Weight | 238.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.067 kg |
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Total lifecycle Carbon footprint
69
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
Yes
Compliant with Exemptions
SCIP Number
B078722f-7853-4e1e-a05b-29638f57b0ab
REACh Regulation
Use Again
End of life manual availability
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
