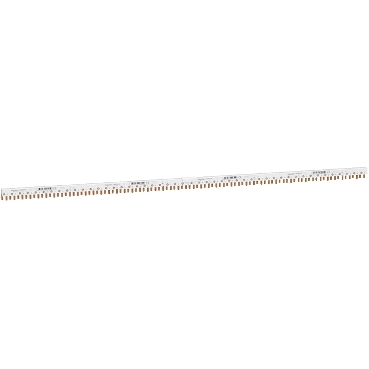

A9XPC648
Lines description:
Total number of 18 mm modules:
Distribution type:
Environmental Data
Total lifecycle Carbon footprint
6
Use Better
Packaging made with recycled cardboard
Yes
Use Again
Take-back
No
| Range | Acti9 |
|---|---|
| Product or component type | Comb busbar |
| Mounting mode | Horizontal |
| Accessory / separate part category | Connection accessory |
| Lines description | 1L + N |
| Length in 18 mm modules | 48 |
| Standards | EN/IEC 61439-1 |
| Number of ways | 48 ways N + 1 L |
|---|---|
| Distribution type | N L |
| Poles configuration for 1 way | 1 x 1P + N |
| Connection pitch | 9 mm between phase and neutral |
| Connector type | Tooth |
| Distance between way | 18 mm |
| Marking | N L |
| Insulation | Insulated |
| Device presentation | Cuttable |
| Provided equipment | end-pieces tooth covers |
| [Ie] rated operational current | 80 A at 40 °C |
| [Ue] rated operational voltage | 230 V AC Ph/N |
| [Ui] rated insulation voltage | 400 V AC conforming to IEC 61439-1 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Mounting location | Top on tunnel type terminals |
| 9 mm pitches | 96 |
| Height | 29 mm |
| Width | 862 mm |
| Depth | 16 mm |
| Net weight | 334 g |
| Colour | White (RAL 9003) |
| Range compatibility | Acti9 Acti9 C40 Acti9 Acti9 C40 Vigi Acti9 Acti9 iDPN Acti9 Acti9 iDPN Vigi Acti9 Acti9 IDc Multi9 Multi9 N40 Multi9 Multi9 N40 Vigi Acti9 Acti9 iC40 Acti9 Acti9 iCV40 Acti9 Vigi iCG40 Acti9 Acti9 iID40 |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
|---|---|
| Pollution degree | 3 conforming to EN/IEC 60439-1 |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 2.800 cm |
| Package 1 Length | 86.400 cm |
| Package 1 Weight | 328.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 4.500 cm |
| Package 2 Width | 8.500 cm |
| Package 2 Length | 91.000 cm |
| Package 2 Weight | 2.085 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 52.700 kg |
