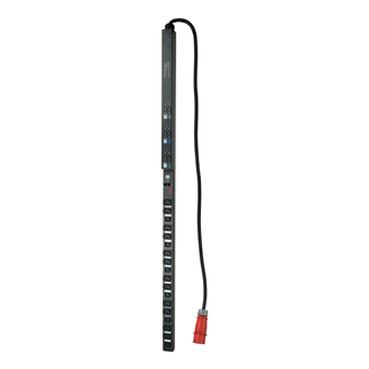

AP7856A
Discontinued on:10 Jun 2022
Recommended replacement(s)
Environmental Data
Use Better
Energy Efficiency Optimized
Energy efficient product
Use Again
Take-back
Yes
| Lead time | Usually in Stock |
|---|
| Colour | Black |
|---|---|
| Product or component type | PDU |
| PDU type | Metered |
| Cord length | 1.82 m |
| Number of cables | 1 |
| Provided equipment | Documentation CD Installation guide Rack mounting brackets RS-232 configuration cable Warranty card |
| Input Voltage | 400 V 3 phases |
|---|---|
| Height | 1626 mm |
| Width | 56 mm |
| Output Voltage | 230 V |
| Depth | 44 mm |
| Net weight | 6.59 kg |
| Mounting location | Side |
| Mounting preference | No preference |
| Input Plug Type | IEC 60309 32 A 3P + N + PE |
| Mounting mode | Rack-mounted |
| Rack units | 0U |
| Mounting position | Vertical |
| [In] rated current | 32 A |
| Max line current | 32 A |
| Input current limits | 32 A |
| Load capacity | 22000 VA |
| Number of power socket outlets | 18 |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 6 IEC 60320 C13 12 IEC 60320 C19 |
| Product certifications | CE GOST VDE |
|---|---|
| Standards | EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 |
| Ambient air temperature for operation | -5…60 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…15240 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 212.1 cm |
| Package 1 Width | 15.2 cm |
| Package 1 Length | 12.1 cm |
| Package 1 Weight | 9.28 kg |
| Warranty | 2 years repair or replace |
|---|
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Environmental Disclosure
Use Better
Compliant with Exemptions
Energy Efficiency Optimized
Energy efficient product
Use Again
End of life manual availability
Take-back
Yes
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
