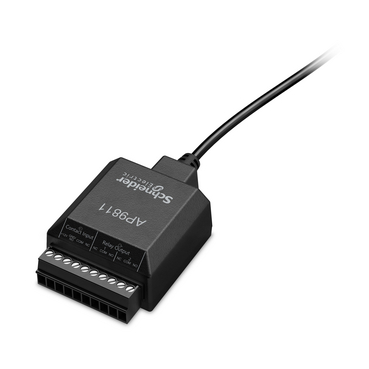

AP9811
Connect the host device of a Network Management Card 3 with peripheral devices
The USB to Dry Contact Accessory connects to the USB port on your NMC.
Through the NMC Web UI, specify which alarms will cause a change in the state of each relay output.
Set the actions that will occur at the host due to a change in state of your input device.
Environmental Data
Use Better
Packaging made with recycled cardboard
No
Use Again
Take-back
No
The USB to Dry Contact Accessory for NMC provides a hardware interface for connecting the host device of a Network Management Card 3 with peripheral devices. The USB to Dry Contact Accessory includes: Input: One input (labeled Contact Input) for one dry contact device, either normally open (“NO”) or normally closed (“NC”). Outputs: Two Form C (SPDT) relays (labeled Relay Output 1 & 2). The USB to Dry Contact Accessory for your Network Management Card connects to the USB port on your NMC. Through the NMC Web UI, you can specify which alarms will cause a change in the state of each relay output. You also set the actions that will occur at the host due to a change in state of your input device.
| Range of product | Management Options and Cables |
|---|---|
| Provided equipment | Cat 5 Ethernet cable User manual |
| Product or component type | Dry contact |
| Number of cables | 1 |
| Max current draw | 200 mA |
|---|---|
| Input voltage | 5 V |
| Output voltage | 12 V at 35 mA DC |
| Power supply type | Self powered via UPS interface port |
|---|
| Colour | Black |
|---|---|
| Net weight | 48.1 g |
| Width | 4.16 cm |
| Height | 6.45 cm |
| Depth | 2.15 cm |
| Standards | EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11 |
|---|---|
| Product certifications | CE |
| Storage Relative Humidity | 0…95 % |
|---|---|
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -15…65 °C 0…40 °C |
| Ambient air temperature for operation | 0…40 °C |
| Storage altitude | 0…15240 m |
| Operating altitude | 0...10000 ft |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.300 cm |
| Package 1 Width | 25.400 cm |
| Package 1 Length | 12.700 cm |
| Package 1 Weight | 140.000 g |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 576 |
| Package 2 Height | 123.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 100.000 cm |
| Package 2 Weight | 80.960 kg |
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Use Better
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
Pro-active compliance (Product out of EU RoHS legal scope)
SCIP Number
F4c2965e-f80d-4830-8cd4-be926afb0f45
REACh Regulation
Use Again
Take-back
No
