BMEXBP1200
Environmental Data
Total lifecycle Carbon footprint
216
Use Better
Packaging made with recycled cardboard
Yes
Use Again
Take-back
No
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 12-slot dual Ethernet and X-bus backplane provides 12 slots with 8 Ethernet and X-bus connectors for mixed modules and 4 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 86mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1500000 hours of MTBF. It is an IP20 rated product. It weighs 1.377kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
| Range of product | Modicon X80 |
|---|---|
| Accessory / separate part type | Rack |
| Number of slots | 8 bus X + Ethernet 4 bus X |
|---|---|
| Product compatibility | I/O module Specific application module BMXCPS power supply BMX processor BME processor |
| Power consumption in W | 283 mW 3.3 V DC 3.9 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M6 screws, mounting on plate By 4 screws - diameter: 4.32…6.35 mm, mounting on panel |
| Current consumption | 164 mA at 24 V DC 86 mA at 3.3 V DC |
| MTBF reliability | 1166108 H |
| Net weight | 1.377 kg |
| IP degree of protection | IP20 |
|---|---|
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.700 cm |
| Package 1 Width | 15.400 cm |
| Package 1 Length | 58.500 cm |
| Package 1 Weight | 1.367 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 11.768 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 54.000 kg |
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Total lifecycle Carbon footprint
216
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
Pro-active compliance (Product out of EU RoHS legal scope)
REACh Regulation
Use Again
End of life manual availability
Take-back
No
Dimensions
Dimensions in mm
a | b | c | |
|---|---|---|---|
Empty Rack | Rack With Extender Module Mounted | ||
503.2 | 504.38 | 105.11 NOTE: Overall height is 134.6 with a CPU mounted. | 19 |
Dimensions in in.
a | b | c | |
|---|---|---|---|
Empty Rack | Rack With Extender Module Mounted | ||
19.81 | 19.85 | 4.14 NOTE: Overall height is 5.30 with a CPU mounted. | 0.75 |
Minimum Clearance
Minimum Clearance of a typical installation in a cabinet with ducts
a Side clearance: > 40 mm (1.57 in.)
b Top and bottom clearance with surrounding objects: > 20 mm (0.79 in.)
1 Installation or casing
2 Wiring duct or tray
Mounting and Fastening the Rack on Panels
NOTE: You can use M4, M5, M6, or UNC #6 screws in the fastening holes.
Dimensions in mm
a | b |
|---|---|
462.9 | 475.6 |
Dimensions in in.
a | b |
|---|---|
18.22 | 18.72 |

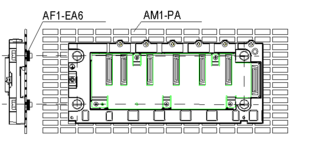

Mounting on Telequick Grid AM1-PA and AM3-PA Mounting Grids
Fasten the rack with four M4, M5, M6 or UNC #6 screws
