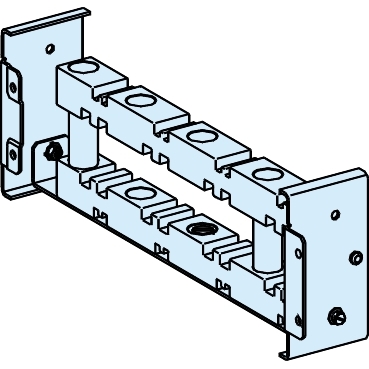

LVS04664
Environmental Data
Use Better
Packaging made with recycled cardboard
Yes
Use Again
Take-back
No
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Busbar support |
| Product name | Linergy BS |
| Range compatibility | Linergy Linergy LGYE busbar Linergy Linergy BS busbar PrismaSeT PrismaSeT P enclosure |
| Product compatibility | Busbar support |
| Cubicle-device connection | Linergy BS horizontal busbar - fixed Linergy LGYE horizontal busbar - fixed |
|---|---|
| installation description | Cubicle - width 650 + 150 mm |
| Quantity per set | Set of 1 |
| Net weight | 1.44 kg |
| Standards | IEC 61439-1 IEC 61439-2 |
|---|---|
| Product certifications | ASTA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 5.800 cm |
| Package 1 Length | 34.400 cm |
| Package 1 Weight | 1.407 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.742 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 99.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 419.216 kg |
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
Compliant with Exemptions
REACh Regulation
Halogen-free status
Halogen free plastic parts product
PVC free
Yes
Silicone-free
Yes
Use Again
End of life manual availability
No need of specific recycling operations
Take-back
No
