Environmental Data
Total lifecycle Carbon footprint
1
Use Better
Packaging made with recycled cardboard
Yes
Use Again
Take-back
No
"This Harmony RSB plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RSB range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Device short name | RSZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RSB with 1 C/O contact at 12 A |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 12 A |
| Shape of pin | Flat |
|---|---|
| [Ue] rated operational voltage | < 250 V AC |
| Contact terminal arrangement | Separate |
| Connections - terminals | Screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 15.5 mm |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Standards | IEC 61984 |
| Product certifications | UL CSA |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 31.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.000 cm |
| Package 2 Width | 9.000 cm |
| Package 2 Length | 17.000 cm |
| Package 2 Weight | 353.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.148 kg |
| Warranty | 12 months |
|---|
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Total lifecycle Carbon footprint
1
Environmental Disclosure
Use Better
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
Yes
Pro-active compliance (Product out of EU RoHS legal scope)
REACh Regulation
Use Again
End of life manual availability
No need of specific recycling operations
Take-back
No

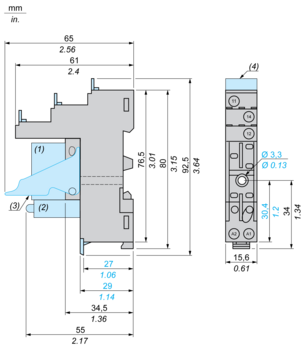

Dimensions
(1) Relays
(2) Protection module
(3) Maintaining clamp
(4) Legend
Wiring Diagram
NOTE: For DC input, A1 have to be +, otherwise it would short circuit from protection module
