function module, TransferPacT, fire protection, 24V DC pulse, input signal

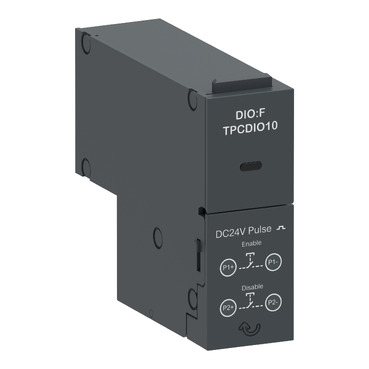

TPCDIO10

Environmental Data
Total lifecycle Carbon footprint
1
Use Better
Packaging made with recycled cardboard
information_stroke
Recycled cardboard content is minimum 70% (50% in US). Some orders may include non-recycled cardboard until stock runs out.
Yes
Use Again
Take-back
information_stroke
Whether the product has been included in a global take-back program. Some products are eligible in some geographies, please verify if it's available in your country.
No
Description
arrow2_down
TPCDIO10 is input module as signalling accessory. It is provided 24VDC pulse signal for fire protection,with maximum input current 10mA. The fire protection signal can transfer ATSE to off position when there is fire emergency and protect power continuity for critical loads as well.
Specifications
arrow2_down
Main
Range of productTransferPacT
Product or component typeI/O module
Device applicationSignalling
Complementary
Auxiliary contact composition2 NO
Signalling functionFire protection (transfer to off position)
Auxiliary connection terminalScrew clamp terminal 0.05…2.6 mm²
Mounting modePlug-in
Mounting positionLeft-bottom
Maximum input current10 mA 24 V DC +/- 20 %
[Ui] rated insulation voltage30 V DC
Tightening torque0.6 N.m +/- 0.1 N.m
Height56.5 mm
Width20 mm
Depth69 mm
Net weight40 g
Accessory / separate part categorySignalling accessory
Environment
IP degree of protectionIP20
Pollution degree3
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height2.000 cm
Package 1 Width5.700 cm
Package 1 Length6.900 cm
Package 1 Weight140.000 g
Unit Type of Package 2S02
Number of Units in Package 220
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight3.300 kg
