XD4PA12 Product picture Schneider Electric
Roll over image to zoom in
XD4PA12 Product picture Schneider Electric
technical benefits
+ 5
+ 5
1  videos
XD4PA12 Product picture Schneider Electric
joystick controller Ø22 2-direction stay put 1NO per direction

XD4PA12

Type of operator:

Operator position information:

Environmental Data
Total lifecycle Carbon footprint
1
Use Better
Packaging made with recycled cardboard
information_stroke
Recycled cardboard content is minimum 70% (50% in US). Some orders may include non-recycled cardboard until stock runs out.
Yes
Use Longer
Product repair index
information_stroke
Inspired by the French repair index and EN 45 554. Only qualified personnel should install, replace, or service this equipment.
A
Use Again
Recyclability potential,in %
information_stroke
The calculation of the recyclability potential relies on the scenario "France - parts are shredded" of TR62635 considering all parts in the product and materials recyclability. We recognized that this may not always allow comparison with other competitor offers on the market and are waiting for a common standard to be published end of 2026.
42
Take-back
information_stroke
Whether the product has been included in a global take-back program. Some products are eligible in some geographies, please verify if it's available in your country.
No
‌‌‌
Main documents
Documents
Product datasheet
action_download_stroke
Catalog
action_download_stroke
CAD
arrow5_step
Environmental Disclosure
action_download_stroke
See all documents
This product is compatible with
This product is compatible with these Spare parts
ZD4PA12 Product picture Schneider Electric
joystick controller head Ø22 2-direction stay put
ZD4PA12
Price: 289.00 ILS
ZD4PA103 Product picture Schneider Electric
contact block with body/fixing collar for 2-direction joystick controller
ZD4PA103
Price: 233.00 ILS
Description
arrow2_down
This Harmony XB4, joystick controller operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.

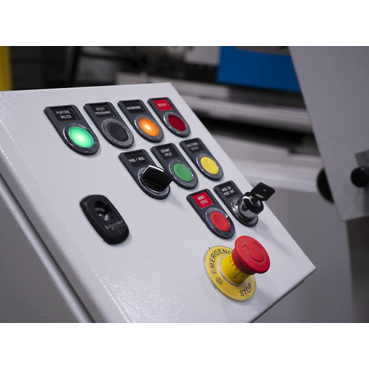

Image of product in real life situation Contextual_Image_XB4_1
Image of product in real life situation Contextual_image_XB4_10_2024
Image of product in real life situation Contextual_image_XB4_11_2024
Specifications
arrow2_down
Main
Range of productHarmony XDA
Product or component typeJoystick controller
Device short nameXD4
Bezel materialChromium plated metal
Fixing collar materialZamak
Mounting diameter22.5 mm
Sale per indivisible quantity1
Type of operatorStay put, long operating shaft 54 mm length
Operator position information3 positions
Operator direction information2 directions
Contacts type and composition1 NO
Contact operationSlow-break
Connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Complementary
CAD overall width30 mm
CAD overall height46.5 mm
CAD overall depth109 mm
Net weight0.116 kg
Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
Shape of signaling unit headRound
Notch per direction1
Contacts usageStandard
Positive openingWithout
Mechanical durability1000000 cycles
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Shape of screw headCross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts materialSilver alloy (Ag/Ni)
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ie] rated operational current0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1
Electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Device presentationComplete product
Environment
Protective treatmentTH
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-25…70 °C
Electrical shock protection classClass I conforming to IEC 60536
IP degree of protectionIP66 conforming to IEC 60529
NEMA degree of protectionNEMA 13
NEMA 4X
IK degree of protectionIK03 conforming to IEC 50102
StandardsIEC 60947-5-4
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-5-5
IEC 60947-1
UL 508
IEC 60947-5-1
JIS C8201-1
Product certificationsCSA
LROS (Lloyds register of shipping)
BV
UL listed
DNV
Vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height12.8 cm
Package 1 Width3.4 cm
Package 1 Length4.8 cm
Package 1 Weight122.0 g
Unit Type of Package 2S02
Number of Units in Package 240
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.187 kg
Contractual warranty
Warranty12 months
arrow2_down
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.
Environmental Data explained
How we assess product sustainability
Environmental footprint
Total lifecycle Carbon footprint
information_stroke
CO2 equivalent emissions from the representative product's entire life cycle and its electricity mix aligned with its commercial presence, according to the PEP Ecopassport methodology. The emissions may have been extrapolated for this specific product version.
1
Environmental Disclosure
information_stroke
Assessment of the product environmental impacts along its life-cycle as per the PEP-Ecopassport methodology.
Product Environmental Profile
Use Better
Materials and Substances
Packaging made with recycled cardboard
information_stroke
Recycled cardboard content is minimum 70% (50% in US). Some orders may include non-recycled cardboard until stock runs out.
Yes
Packaging without single use plastic
information_stroke
Single-use plastic definition is aligned with the Directive 2019/904/EC. Some orders may include plastic until stock runs out.
Yes
EU RoHS Directive
information_stroke
Status according to European Union RoHS directive (Restriction of Hazardous Substances).
Pro-active compliance (Product out of EU RoHS legal scope)
SCIP Number
information_stroke
European Chemicals Agency database of Substances of Concern In Products established under the Waste Framework Directive.
3f5be3ea-91d8-44be-909b-d6ac0a6fe845
REACh Regulation
information_stroke
Declaration according to EU REACh (Registration, Evaluation, Authorization and restriction of Chemical substance) regulation Art.33
REACh Declaration
Use Longer
Lifetime extension
Product repair index
information_stroke
Inspired by the French repair index and EN 45 554. Only qualified personnel should install, replace, or service this equipment.
A
Use Again
Repack and remanufacture
Recyclability potential,in %
information_stroke
The calculation of the recyclability potential relies on the scenario "France - parts are shredded" of TR62635 considering all parts in the product and materials recyclability. We recognized that this may not always allow comparison with other competitor offers on the market and are waiting for a common standard to be published end of 2026.
42
End of life manual availability
information_stroke
Information for treatment facilities on specific operations needed for recycling.
End of Life Information
Take-back
information_stroke
Whether the product has been included in a global take-back program. Some products are eligible in some geographies, please verify if it's available in your country.
No
WEEE Label
information_stroke
Indicates if the product needs specific recycling operations as per the Waste from Electrical and Electronic Equipments regulation.
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

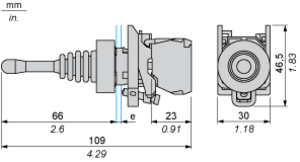

Dimensions Drawings
arrow2_down
Dimensions


e: panel thickness: 1 to 6 mm / 0.04 to 0.24 in.


Mounting and Clearance
arrow2_down
Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)

Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board

Connection by Faston Connectors



(1) Diameter on finished panel or support

(2) 40 mm min. / 1.57 in. min.

(3) 30 mm min. / 1.18 in. min.

(4) Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm 0+0.4 / 0.88 in. 0+0.016)

(5) 45 mm min. / 1.78 in. min.

(6) 32 mm min. / 1.26 in. min.
