What analog inputs are available on the ATV630 Process Drive?
Issue:
ATV630 process drive analog inputs available.
Product line:
Altivar Process, ATV630, ATV600, Altivar 630
Environment:
All serial numbers
Cause:
n/a
Resolution:

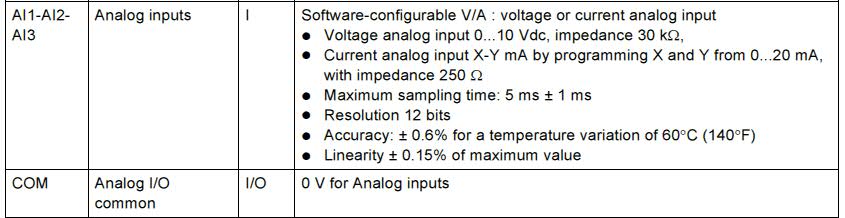

The ATV630 drive comes with three analog inputs. Each is programmable to be used for voltage or current.
The Min and Max Values are independently adjustable to allow setting up as voltage or current speed reference for most applications. For example, 0-10V, 2-10V, 4-20mA, 20-0mA, etc.
ATV630 process drive analog inputs available.
Product line:
Altivar Process, ATV630, ATV600, Altivar 630
Environment:
All serial numbers
Cause:
n/a
Resolution:
The ATV630 drive comes with three analog inputs. Each is programmable to be used for voltage or current.
The Min and Max Values are independently adjustable to allow setting up as voltage or current speed reference for most applications. For example, 0-10V, 2-10V, 4-20mA, 20-0mA, etc.
