What is the pin-out for the cable XBTZ9780?

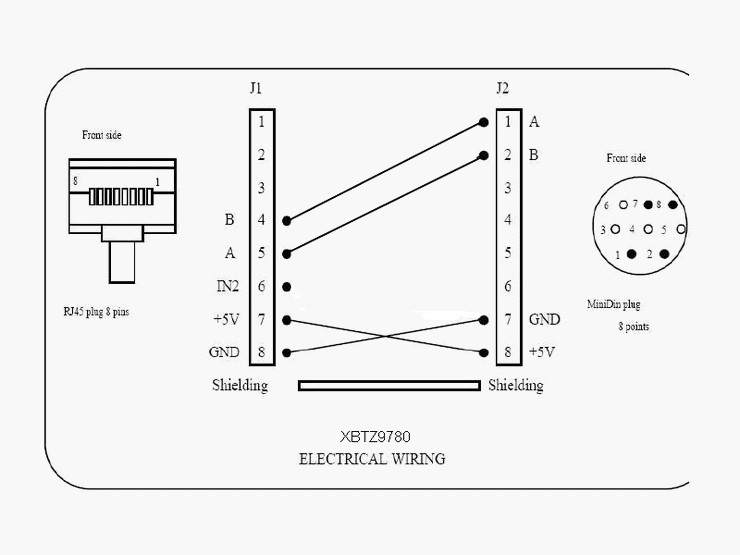

The pin-out of the XBTZ9780 cable is as follows
PinOut

Released for: Schneider Electric UK
