How do you fit the LV429489 Vigi to an NSX160/250 breaker?

You will need to remove and swap over the bottom connections on the breaker 8mm and vigi 6mm, then you can connect the two devices together to become a combined unit.

Please see attached instructions.

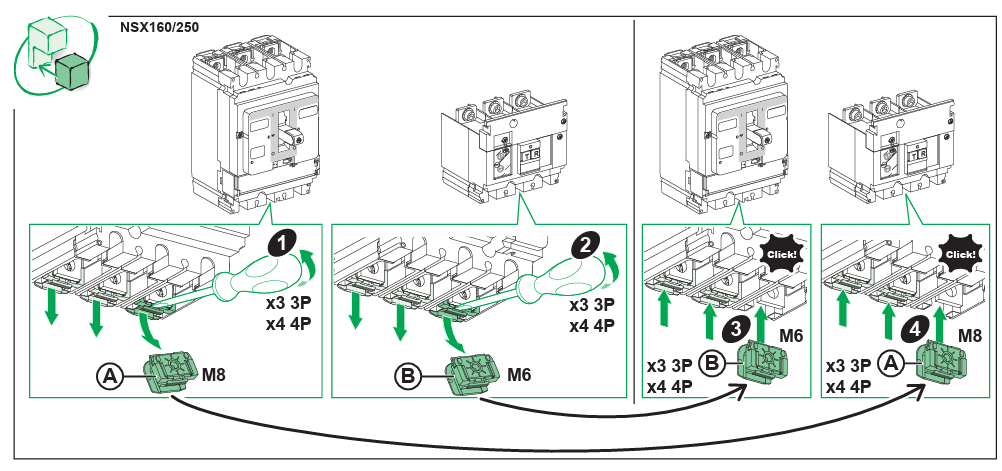

Instruction snippet

Released for: Schneider Electric UK

Attachment(s)
files.pdf [11.42 MB]
