No the SEA9NI1603 CANNOT have a Undervolt or Shunt fitted.
With one exception none of the Switched disconnectors for the B Type boards can have Undervoltage release coil, Shunt trip coil, or Auxiliaries fitted. This is because they are based on the Interpact INS range.
The only Acti 9 switch incomer that can have a Under voltage release or Shunt trip coil fitted is the SEA9NI2254 as this is based on the NSX range
This includes the Acti 9 Isobar P incomers, such as SEA9PNI1603 or SEA9PNI2503 etc. The part number which can have these coils are the SEA9PNI2254 and SEA9PQ2254.
With one exception none of the Switched disconnectors for the B Type boards can have Undervoltage release coil, Shunt trip coil, or Auxiliaries fitted. This is because they are based on the Interpact INS range.
The only Acti 9 switch incomer that can have a Under voltage release or Shunt trip coil fitted is the SEA9NI2254 as this is based on the NSX range
Switched Disconnector for B type boards | Possible Undervolt Shunt Trip Auxiliary |
---|---|
SEA91253N | No |
SEA91254 | No |
SEA9NI1603 | No |
SEA9NI1604 | No |
SEA9NI2003 | No |
SEA9NI2004 | No |

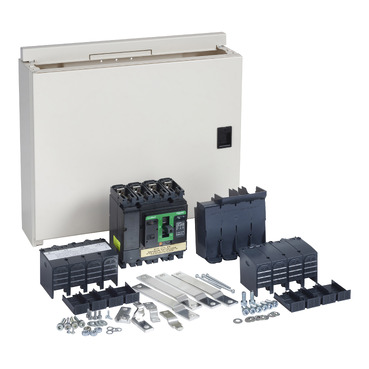

SEA9NI2254 | Yes |
SEA9NI2503 | No |
SEA9NI2504 | No |
This includes the Acti 9 Isobar P incomers, such as SEA9PNI1603 or SEA9PNI2503 etc. The part number which can have these coils are the SEA9PNI2254 and SEA9PQ2254.
