How to Update the Application for the Vigilohm IMDLRDH

How can we help you today?

Note: Implementing a new application in your IMDLRDH will erase your previous configuration.

To update the the application program of your IMDLRDH you need to :

Have a formatted USB key
Download the latest version of the application : https://www.se.com/ww/en/download/document/MFR2858700_Ver_2.0.0/

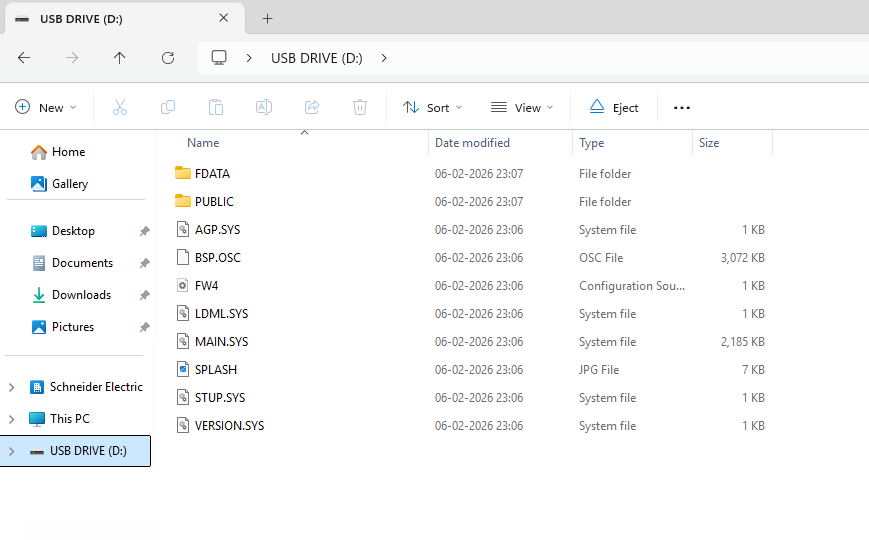

Unzip the content and place the extracted files on the root of your USB Key
Switch off the IMDLRDH

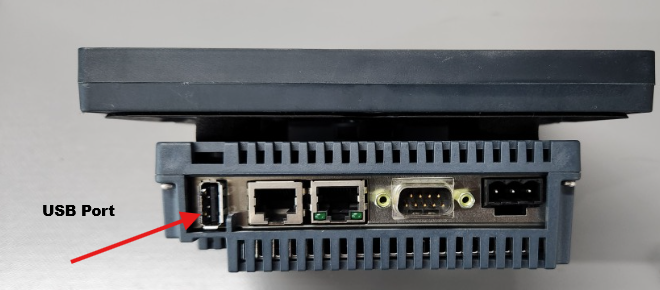

Plug the USB Key in the USB port of the IMDLRDH
Power on the IMDLRDH

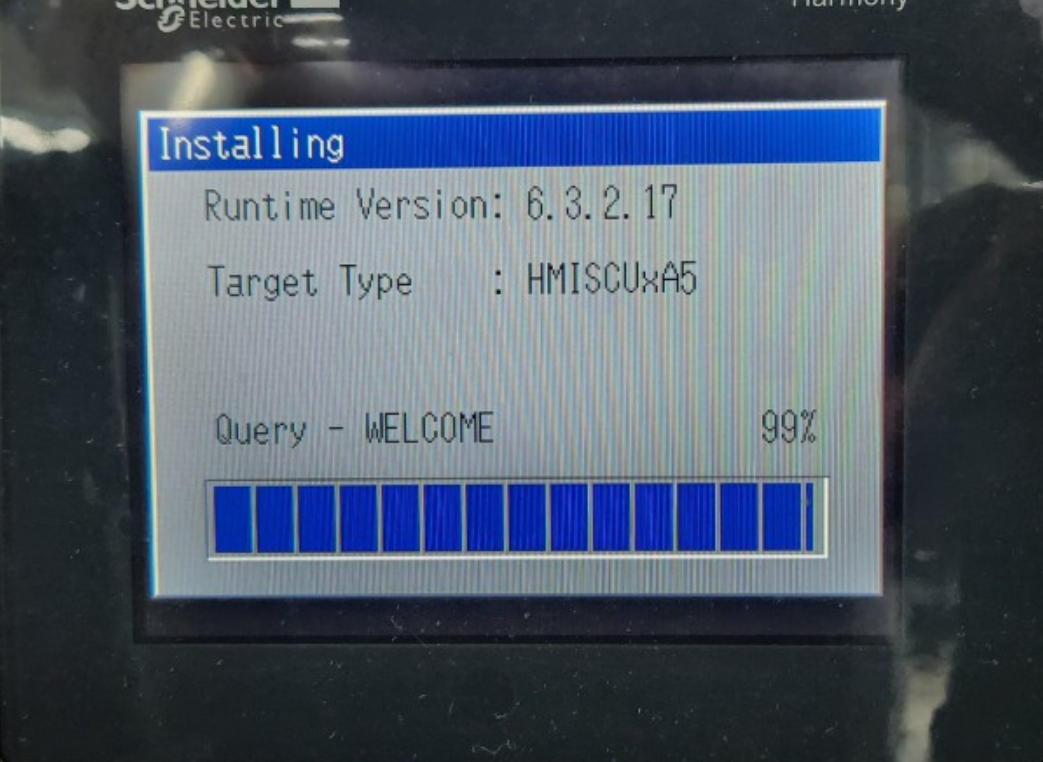

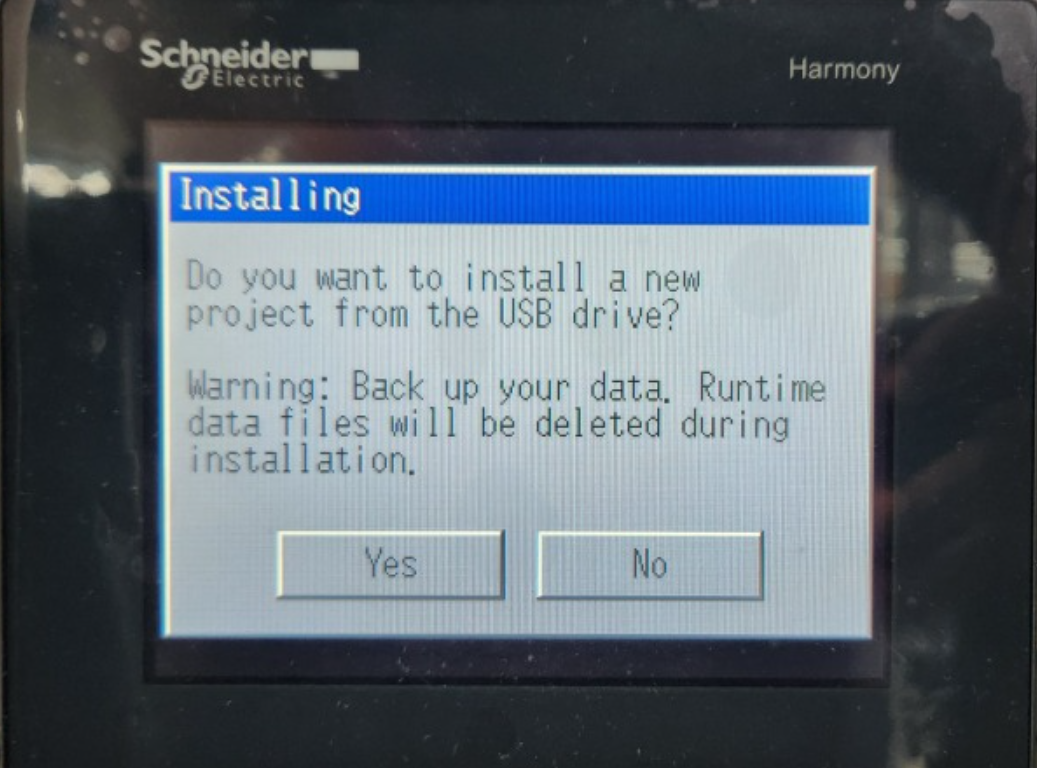

Wait for the program to be uploaded in the IMDLRDH

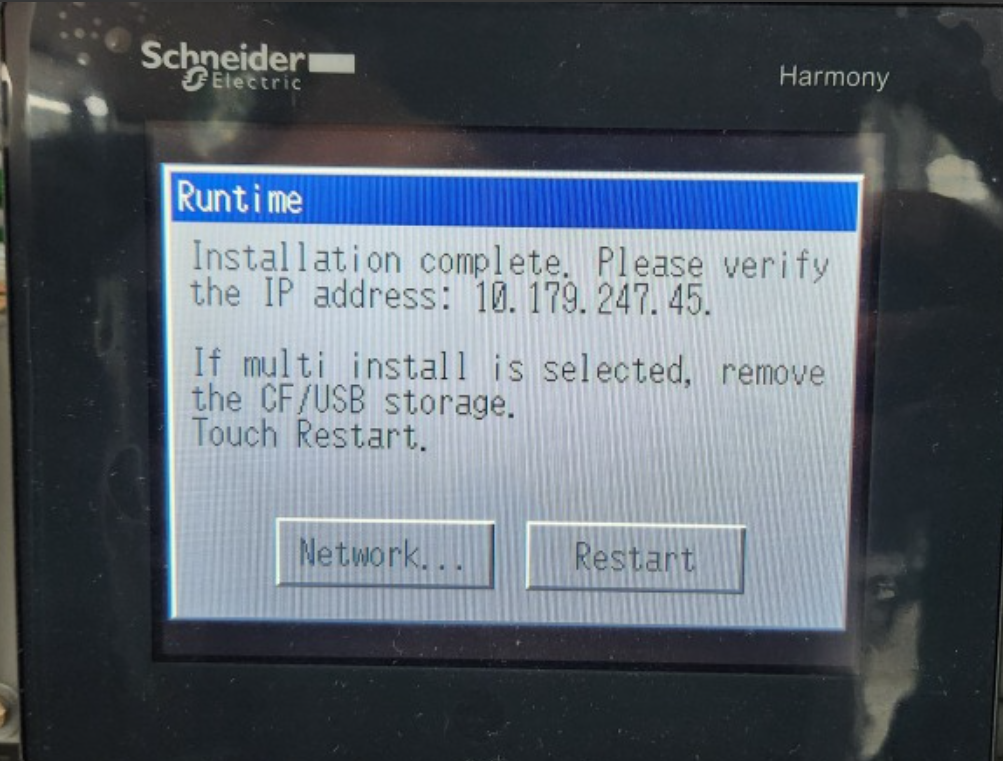

Remove the USB key once the program is uploaded

After these steps you need to perform the commissioning of your IMDLRDH.
