Acti 9 & IKQ Incomers cable Capacity

125A incomer for both Acti9 & Ikq boards will be max 50mm cable capacity

IKQ switch:

Loadcentre

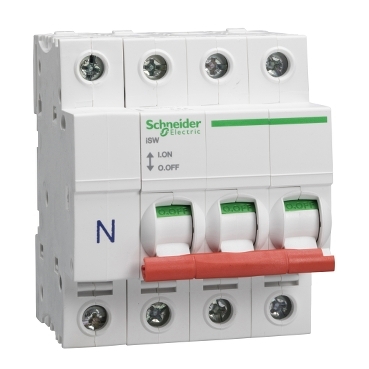

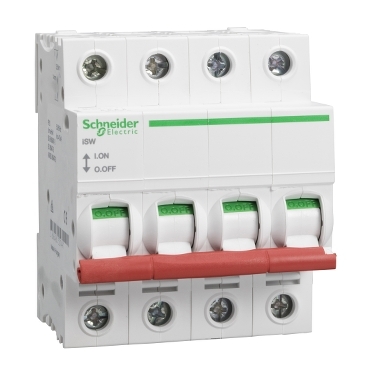

Acti9 Switch:

Acti9 Switch

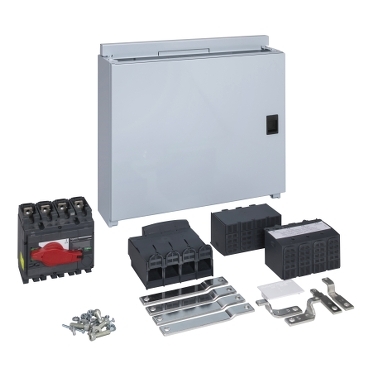

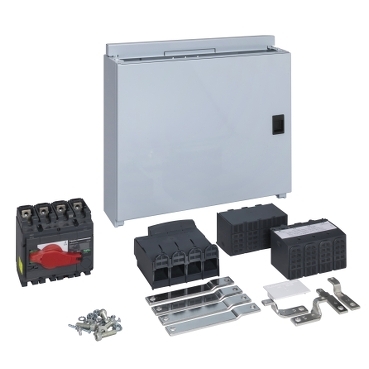

160 to 250A Switches & 100A - 250A Mccbs below: (will all come with 400mm extension box)

160A switch which will be 95mm with a lug or a 200A  / 250A which will take 185mm with a narrow palm.

IKQ range:
IKQ
Acti9 range:

mccb
100A mccb 95mm with a lug
160A mccb 95mm with a lug
200A mccb 185mm with narrow palm lug
250A mccb 185mm with narrow palm lug

all snippets from our product brochures please see www.se.com/uk Final Distribution

Released for: Schneider Electric UK
