Issue:
Product design features
Product Line:
Combination Service Entrance Devices
Resolution:
The OCK400 is listed as an accessory on the wiring diagram of the following 400 A CSEDs: SU3040D400CN, SU3040D300CN, SU3040D400CB, QU816D400SL, QU816D400CL, QU816D400CLX, CU12L400CN, CU12L400CB, QU12L400SL, QU12L400CL, CU816D400CN, RU3040D400CK, RU3040D400CL, RU3040D400CLX.
NOTE: This trough DOES NOT allow for entering the top endwall on any of the 400 A CSED devices. As shown below, it is ONLY a trough for routing the service wires into the top of the trough, then down through the trough to enter the CSED devices from the bottom.

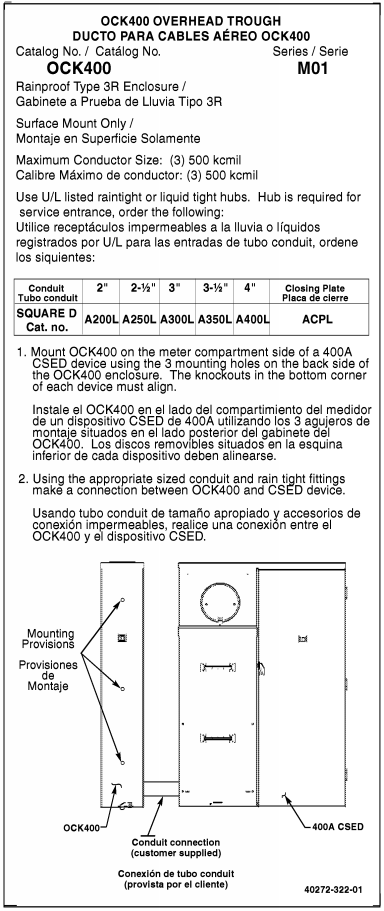

Installation instructions;

Product design features
Product Line:
Combination Service Entrance Devices
Resolution:
The OCK400 is listed as an accessory on the wiring diagram of the following 400 A CSEDs: SU3040D400CN, SU3040D300CN, SU3040D400CB, QU816D400SL, QU816D400CL, QU816D400CLX, CU12L400CN, CU12L400CB, QU12L400SL, QU12L400CL, CU816D400CN, RU3040D400CK, RU3040D400CL, RU3040D400CLX.
NOTE: This trough DOES NOT allow for entering the top endwall on any of the 400 A CSED devices. As shown below, it is ONLY a trough for routing the service wires into the top of the trough, then down through the trough to enter the CSED devices from the bottom.
Installation instructions;
