Issue:
Product Design Features
Product Line:
Servicepak Power Outlet Panels
Environment:
Recptacles and configurations
Cause:
Applications
Resolution:
NOTE: This FAQ is ONLY for showing the configurations, the receptacles and QO circuit breakers used in each Servicepak, Power Outlet Panel catalog number. This FAQ is NOT for determining ANY other product information. For all other product information, see the current on-line digest or each catalog number CAD drawing.

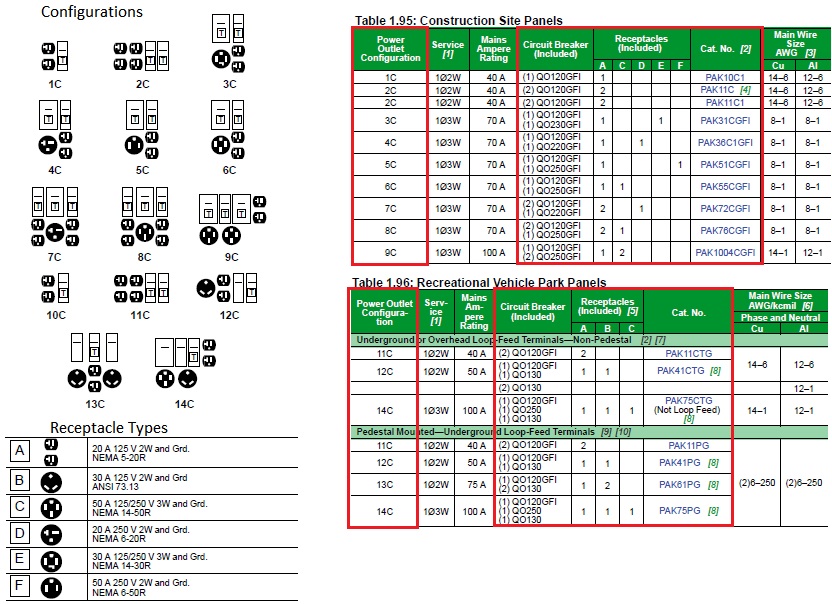

1) The configuration for each catalog number is shown in the below tables 1.95 and 1.96, under the column heading - "Power Outlet Configuration". That configuration will match what is shown to the left of the table 1.95 under the heading "Configurations".
2) The receptacle types for each catalog number are shown in the same tables, under the heading "Receptacles(Included)", with the quantity of each receptacle type under a letter. That letter corresponds with the receptacle types shown in the lower left corner to the tables under - "Receptacle Types".
3) The QO circuit breakers contained in each catalog number, that feed each receptacle are shown under the table heading "Circuit Breaker(Included)".
For Example: The catalog number PAK10C1 has the configuration 1C and contains one type 'A' receptacle which is a 20A, 125V, 2W and Grnd-NEMA 5-20R and is fed from a QO120GFI breaker installed.
Product Design Features
Product Line:
Servicepak Power Outlet Panels
Environment:
Recptacles and configurations
Cause:
Applications
Resolution:
NOTE: This FAQ is ONLY for showing the configurations, the receptacles and QO circuit breakers used in each Servicepak, Power Outlet Panel catalog number. This FAQ is NOT for determining ANY other product information. For all other product information, see the current on-line digest or each catalog number CAD drawing.
1) The configuration for each catalog number is shown in the below tables 1.95 and 1.96, under the column heading - "Power Outlet Configuration". That configuration will match what is shown to the left of the table 1.95 under the heading "Configurations".
2) The receptacle types for each catalog number are shown in the same tables, under the heading "Receptacles(Included)", with the quantity of each receptacle type under a letter. That letter corresponds with the receptacle types shown in the lower left corner to the tables under - "Receptacle Types".
3) The QO circuit breakers contained in each catalog number, that feed each receptacle are shown under the table heading "Circuit Breaker(Included)".
For Example: The catalog number PAK10C1 has the configuration 1C and contains one type 'A' receptacle which is a 20A, 125V, 2W and Grnd-NEMA 5-20R and is fed from a QO120GFI breaker installed.
