What is the max wire size for control wire terminals for PowerPacT H and J frames breakers?
Issue:
What is the max wire size for control wire terminals for PowerPacT H and J frames breakers?

Product Line:
Powerpact H and J frame

Resolution:
Each control wire terminal has a 1/4 in. (6.3mm) male spade connector tab which allows monitoring of circuit status.

Use catalog number S37423 for H frame, and S37424 for J frame.

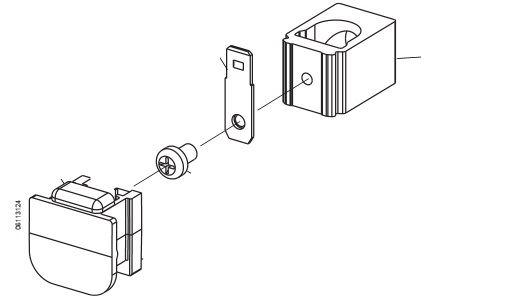

Control wire terminal

See instruction bulletin 48940-233-01.
