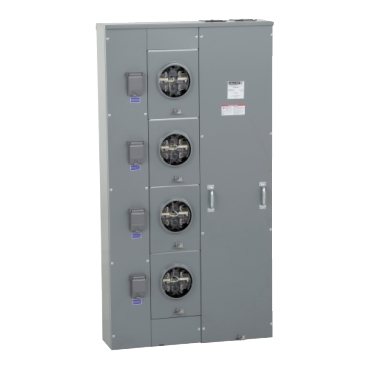

What are the repair parts for a MPL64225, Series M03?
Issue:
Current design repair parts
Product Line:
Meter Pak Metering
Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover (includes labels, for the left side of the enclosure) - MPL64225C
Circuit Breaker RB Cover (one position) - BCV
Cover Screws (one kit is 10 screws)- 4020513002K (pull box cover requires 6 screws: the customer cover requires 8 screws)
Meter Socket Cover (ringless type, one position) - 73297-668-50
Pull Box Cover (for the right side of the enclosure and includes handles and labels) - MPL64225PC
Line Phase and Neutral Lugs - MMLK250
Load Neutral and Service Ground Lugs Assembly: 7329688551 (includes bus connector and six lugs)
Mounting Screws for load neutral and service ground assembly: (2) 2153217161 and (1) 2142720241
Equipment Ground Lugs Assembly: 7329897053 (includes mounting bracket and four lugs)
Mounting Screws for equipment ground lug assembly: (2) 2142217101
Repair Parts Kit for one position ONLY, includes meter socket line side through tenant breaker base - MPL1225KIT
Mounting Channel - 7329652101
Current design repair parts
Product Line:
Meter Pak Metering
Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover (includes labels, for the left side of the enclosure) - MPL64225C
Circuit Breaker RB Cover (one position) - BCV
Cover Screws (one kit is 10 screws)- 4020513002K (pull box cover requires 6 screws: the customer cover requires 8 screws)
Meter Socket Cover (ringless type, one position) - 73297-668-50
Pull Box Cover (for the right side of the enclosure and includes handles and labels) - MPL64225PC
Line Phase and Neutral Lugs - MMLK250
Load Neutral and Service Ground Lugs Assembly: 7329688551 (includes bus connector and six lugs)
Mounting Screws for load neutral and service ground assembly: (2) 2153217161 and (1) 2142720241
Equipment Ground Lugs Assembly: 7329897053 (includes mounting bracket and four lugs)
Mounting Screws for equipment ground lug assembly: (2) 2142217101
Repair Parts Kit for one position ONLY, includes meter socket line side through tenant breaker base - MPL1225KIT
Mounting Channel - 7329652101
Released for: Schneider Electric USA
