What is in the handle bag assembly 80121-063-50?
Issue:
What is in a Panelboard's handle bag assembly 80121-063-50?
Product Line:
Panelboards
Environment:
Maintenance/Replacement
Cause:
Installation
Resolution:

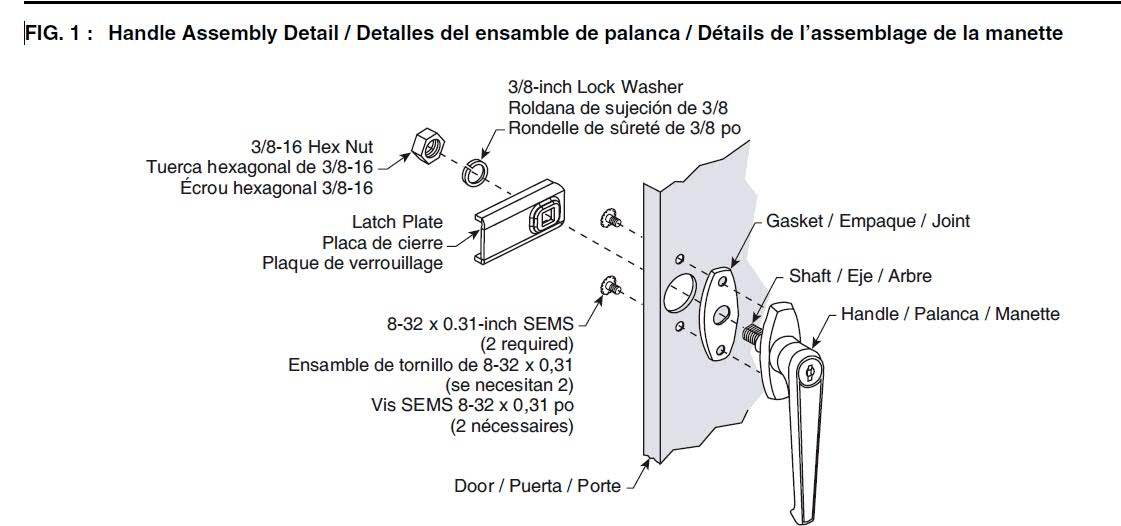

Handle, latch pawl, mounting hardware, gasketing. Complete handle assy for (1) Nema 3R Handle, see Bill of material, assembly drawing and attached Instruction Bulletin below:
(1) 80022-024-01 MH-WP LOCKING HANDLE
(1) 80106-353-01 NONWELDED WP LATCH PAWL
(1) 23701-00240 LOCK WASHER
(1) 23001-00240 3/8-16 X 5/8 HEX NUT
What is in a Panelboard's handle bag assembly 80121-063-50?
Product Line:
Panelboards
Environment:
Maintenance/Replacement
Cause:
Installation
Resolution:
Handle, latch pawl, mounting hardware, gasketing. Complete handle assy for (1) Nema 3R Handle, see Bill of material, assembly drawing and attached Instruction Bulletin below:
(1) 80022-024-01 MH-WP LOCKING HANDLE
(1) 80106-353-01 NONWELDED WP LATCH PAWL
(1) 23701-00240 LOCK WASHER
(1) 23001-00240 3/8-16 X 5/8 HEX NUT
Released for: Schneider Electric USA
