What is the difference in an NSX cord and a circuit breaker ULP cord?
Product Line:
Circuit Breakers
Resolution:
Besides the various lengths, the cable itself is the same. It consists of a 4-wire cable with an RJ45 jack at one end. The difference is what is terminated at the other end of the cable.
NSX Cord (example - see S434201 picture below)
The NSX cord has an RJ45 jack at one end, and 4 wires terminated into a small terminal block on the other end. This is used with Powerpact H, J, and L breakers. If the terminal block is not needed, it can be removed.

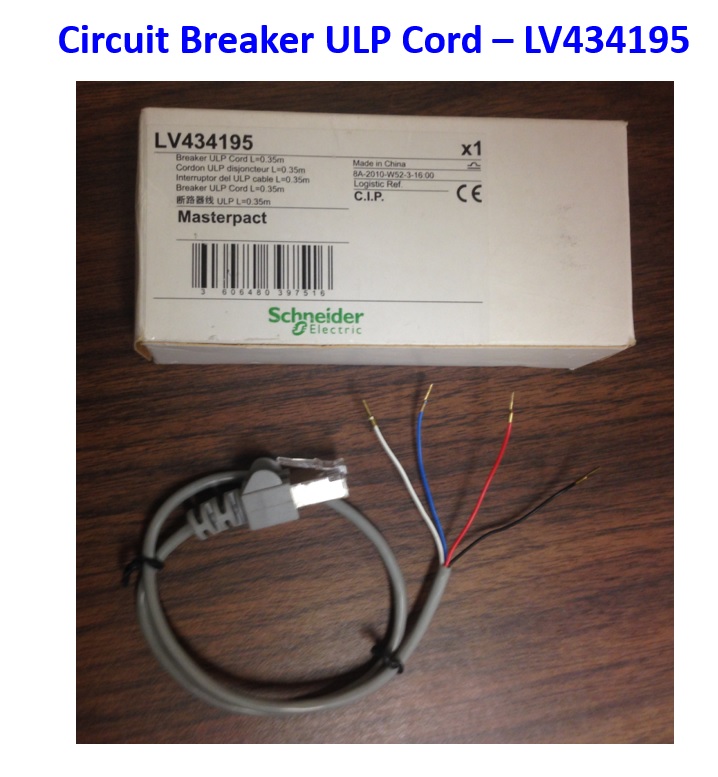

Circuit Breaker ULP Cord (example - see LV434195 picture below)
The circuit breaker ULP cord has an RJ45 jack at one end, and at the other end, the 4 wires are ready to be connected into screw terminals of an accessory such as a communication module. This is used with Powerpact P, R, and Masterpact NT and NW breakers to connect the BCM to the communication network.
Circuit Breakers
Resolution:
Besides the various lengths, the cable itself is the same. It consists of a 4-wire cable with an RJ45 jack at one end. The difference is what is terminated at the other end of the cable.
NSX Cord (example - see S434201 picture below)
The NSX cord has an RJ45 jack at one end, and 4 wires terminated into a small terminal block on the other end. This is used with Powerpact H, J, and L breakers. If the terminal block is not needed, it can be removed.
Circuit Breaker ULP Cord (example - see LV434195 picture below)
The circuit breaker ULP cord has an RJ45 jack at one end, and at the other end, the 4 wires are ready to be connected into screw terminals of an accessory such as a communication module. This is used with Powerpact P, R, and Masterpact NT and NW breakers to connect the BCM to the communication network.
