What size breaker is recommended to be used with an HWA, EMA, and EBA SPDs.

How can we help you today?

What size circuit breaker and wire is recommended to be used with an EMA, EBA, 460, 440, XDSE / 430, HWA, 425, 420, & SDSA SPDs.

Product Line:
Surge Protective Devices (SPD's)

Resolution:

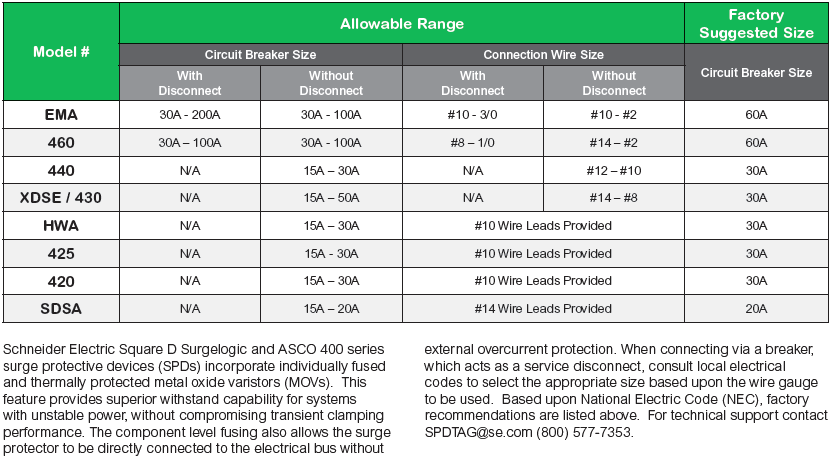

Circuit Breaker and Wire Ranges

The EBA terminals accept a range of 10 AWG (5.26 mm2) to 2/0 AWG (67.4 mm2) copper wire for phase, neutral, and ground connectors.
The EMA terminals accept a range of 10 AWG (5.26 mm2) to 2/0 AWG (67.4 mm2) with switch offer and 10 AWG (5.26mm2) to 2 AWG (33.6mm2) with NO switch offer copper wire for phase, neutral, and ground conductors.

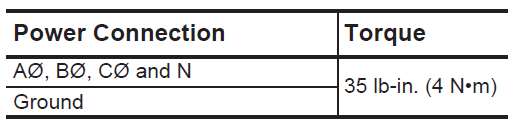

EBA & EMA Terminal Torque
EBA & EMA Terminal Torque

Released for: Schneider Electric USA

Published on:11/15/2016Last Modified on:7/29/2025

Range:

Type HWA

Type EMA

TYPE XDSE

ASCO Model 420 Surge Protective Device
