Issue:
Adjustable Lever Arms for 9007 Type C Limit Switches
Product Line:
Limit Switches
Environment:
9007 Type C switch
Resolution:

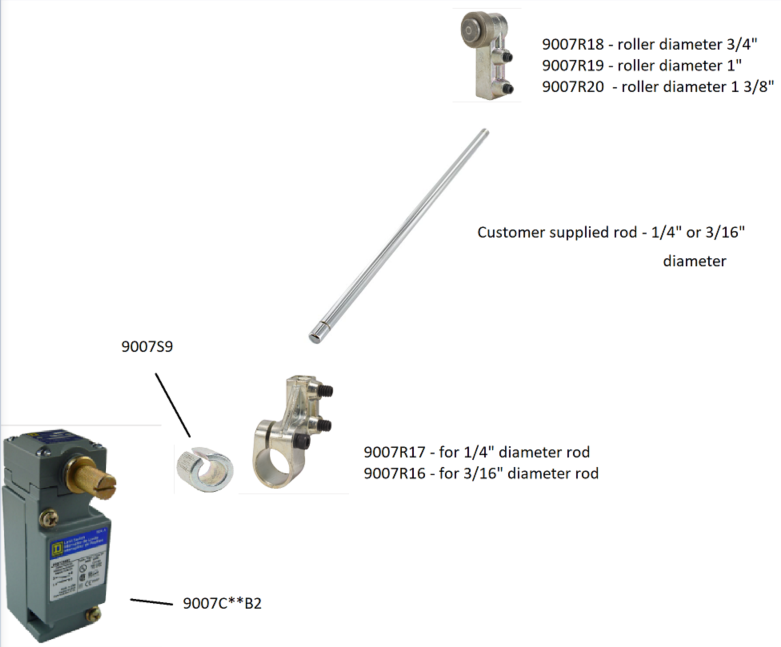

Use a 9007S9 hub, 9007R16 or R17 clamp for rod or keystock, and 9007R18 or R19 or R20 roller per Digest 172 pp. 19-7 and 19-17 . 1/4`` keystock or 3/16`` rod needed may be cut to the desired length. The rod or keystock is not supplied by Sq D.
Adjustable Lever Arms for 9007 Type C Limit Switches
Product Line:
Limit Switches
Environment:
9007 Type C switch
Resolution:
Use a 9007S9 hub, 9007R16 or R17 clamp for rod or keystock, and 9007R18 or R19 or R20 roller per Digest 172 pp. 19-7 and 19-17 . 1/4`` keystock or 3/16`` rod needed may be cut to the desired length. The rod or keystock is not supplied by Sq D.
Released for:Schneider Electric USA
