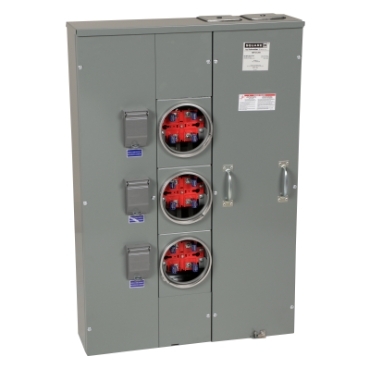

What are the repair parts for an MP43200, Series M01 branch unit?
Issue:
Current design repair parts
Product Line:
Meter Pak Metering
Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover (includes labels) - MP3200C
Circuit Breaker RB Cover (one position) - BCV
Cover Screws - 4020513002K
Meter Socket Cover (ring type, one position) - MMC
Meter Socket Sealing Ring (aluminum latch type) - 2920910001
Pull Box Cover - MP23200PC
Line Phase and Neutral Lugs - MMLK250
Alternate Lug Kits - Refer to Digest
Load Neutral and Service Ground Lug Assembly - 7329704351 (includes 5 lugs and bus bar the lugs mount on)
Mounting Screws for Load Neutra/Service Ground Assembly:
(1) 2142720163 (mounts the right side of the assembly to the Main Neutral bus bar)
(1) 2142717120 (mounts the left side of the assembly to the enclosure)
Equipment Ground Lug Assembly - 7329704451 (includes 3 lugs and the mounting bracket)
Mounting screws for the Equipment Ground Assembly - 2142217101 (2 required)
Parts Kit (one position, meter socket line side through tenant breaker base) - MP200KIT
Mounting Channel - 7329652001
Current design repair parts
Product Line:
Meter Pak Metering
Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover (includes labels) - MP3200C
Circuit Breaker RB Cover (one position) - BCV
Cover Screws - 4020513002K
Meter Socket Cover (ring type, one position) - MMC
Meter Socket Sealing Ring (aluminum latch type) - 2920910001
Pull Box Cover - MP23200PC
Line Phase and Neutral Lugs - MMLK250
Alternate Lug Kits - Refer to Digest
Load Neutral and Service Ground Lug Assembly - 7329704351 (includes 5 lugs and bus bar the lugs mount on)
Mounting Screws for Load Neutra/Service Ground Assembly:
(1) 2142720163 (mounts the right side of the assembly to the Main Neutral bus bar)
(1) 2142717120 (mounts the left side of the assembly to the enclosure)
Equipment Ground Lug Assembly - 7329704451 (includes 3 lugs and the mounting bracket)
Mounting screws for the Equipment Ground Assembly - 2142217101 (2 required)
Parts Kit (one position, meter socket line side through tenant breaker base) - MP200KIT
Mounting Channel - 7329652001
Released for: Schneider Electric USA
