What are the repair parts for a QMB325, Series D2 (D02)?

Issue:
Repair parts list for QMB325, series D2

Product Line:
QMB Switches

Resolution:

The QMBN325 Series D2 switch is Obsolete, No Longer available with NO Replacement and most if not ALL of the parts will be obsolete with NO Replacements.


Only the parts listed below are considered field replaceable:
Arc Suppressor Assembly (2 per switch) - 4052031850
Arc Shield (2 per switch) - 4052085601
Load Base Assembly (2 per switch, includes lugs) - 4052112050
Load Base Mounting Screw (3 required per load base) - 2142720241
Load Base Side Insulator (1 per load base) - 4052098601
Handle Knob Kit - 4028343550
Lug Assembly (per lug) - 4025128750
Lug Mounting Nut (per lug) - 2342702400

Released for: Schneider Electric USA
Explore more
Product:

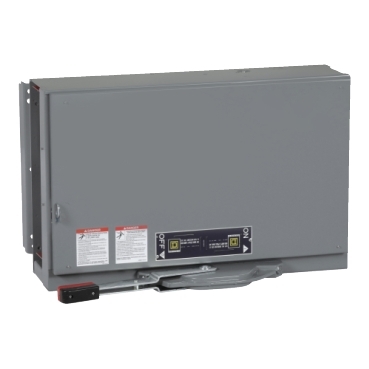

QMB325W
