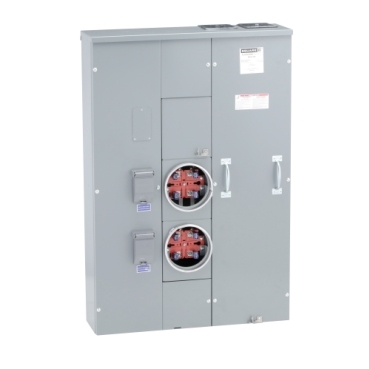

What are the repair parts for an MP42200, Series M01 branch unit?

Issue:
Current design repair parts

Product Line:
Meter Pak Metering

Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover (includes labels) - MP2200C
Circuit Breaker RB Cover (one position) - BCV
Cover Screws - 4020513002K
Blank Meter Socket Cover (top position) - MMCBK
Meter Socket Cover (ring type, one position) - MMC
Meter Socket Sealing Ring (aluminum latch type) - 2920910001
Pull Box Cover - MP23200PC
Line Phase and Neutral Lugs - MMLK250
Load Neutral and Service Ground Lug Assembly - 7329704352 (includes 4 lugs and the bus bar)
Mounting Screws for Load Neutral/Service Ground Assembly:
(1) 2142720163 (mounts the right side of the assembly to the main neutral bus bar)
(1) 2142717120 (mounts the left side of the assembly to the enclosure)

Equipment Ground Lug Assembly - 7329704452 (includes 2 lugs and mounting bracket)
Mounting Screws for Equipment Ground Assembly - 2142217101 (2 required)
Parts Kit (one position, meter socket line side through tenant breaker base) - MP200KIT
Mounting Channel - 7329652001
