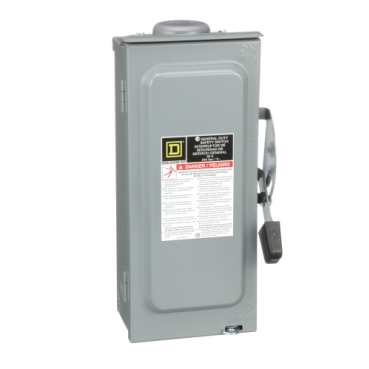

What are the repair parts for a D222NRB, Series F01 general duty safety switch?
Issue:
Repair Parts
Product Line:
GD SS
Resolution:
The parts listed here are the only field replaceable parts.
Line base assembly - 4056642150
Load base assembly - 4056002650
Base assembly mounting screw - 4020516001 (3 required for line base and 2 required for load base)
Arc shield - 4056001801
Arc shield mounting screw - 4020514501
Mechanism assembly - 4056637850
Handle assembly - 4056638750
Handle gasket - 4056608601
Lockplate - 4056638801
Lockplate mounting screw - 2299940562 (2 required)
Lug assembly - 4025101652
Neutral assembly - SN03
Neutral assembly mounting screw - 4020506501
Neutral bonding assembly - 4028365650
Cover latch and spring - 4056607201 and 4022304301
Repair Parts
Product Line:
GD SS
Resolution:
The parts listed here are the only field replaceable parts.
Line base assembly - 4056642150
Load base assembly - 4056002650
Base assembly mounting screw - 4020516001 (3 required for line base and 2 required for load base)
Arc shield - 4056001801
Arc shield mounting screw - 4020514501
Mechanism assembly - 4056637850
Handle assembly - 4056638750
Handle gasket - 4056608601
Lockplate - 4056638801
Lockplate mounting screw - 2299940562 (2 required)
Lug assembly - 4025101652
Neutral assembly - SN03
Neutral assembly mounting screw - 4020506501
Neutral bonding assembly - 4028365650
Cover latch and spring - 4056607201 and 4022304301
Released for: Schneider Electric USA
