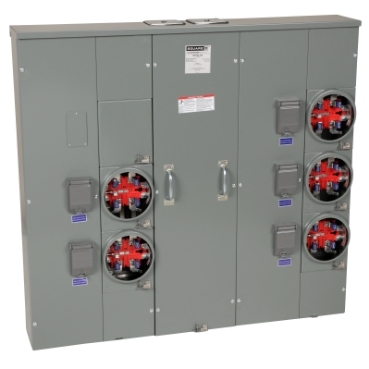

What are the repair parts for an MPH85200, Series M01 branch unit?
Issue:
Current design repair parts
Product Line:
Meter Pak Metering
Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover Left Side (includes labels) - MP5200LC
Customer Cover Right Side (includes labels) - MP5200RC
Circuit Breaker RB Cover (one position) - BCV
Cover Screws - 4020513002K
Meter Socket Cover (ringless type, one position) - MMRC
Blank Meter Socket Cover - MMCBK
Pull Box Cover - MP56200PC
Line Phase and Neutral Lugs - MMLK500
Alternate Lug Kits - Refer to Digest
Load Neutral and Service Ground Lugs Assembly: 7329704352 (includes connector and four lugs - used on the LEFT side of the pull box)
Load Neutral and Service Ground Lugs Assembly: 7329704353 (includes connector and three lugs - used on the RIGHT side of the pull box)
Mounting Screws: (1) 21427-20163 and (3) 2142717120 (needed for each assembly)
Equipment Ground Lugs Assembly: 7329704452 (includes mounting bracket and two lugs - used on the LEFT side of the pull box)
Equipment Ground Lugs Assembly: 7329704451 (includes mounting bracket and three lugs - used on the RIGHT side of the pull box)
Mounting Screws: (4) 2142217101 (2 required for each assembly)
Parts Kit (one position, meter socket line side through tenant breaker base, does not include horn bypass kit) - MP200KIT
Horn Type Bypass Kit - MMHB
Mounting Channel - 7329652101
Current design repair parts
Product Line:
Meter Pak Metering
Resolution:
Only the parts listed below are considered field replaceable:
Customer Cover Left Side (includes labels) - MP5200LC
Customer Cover Right Side (includes labels) - MP5200RC
Circuit Breaker RB Cover (one position) - BCV
Cover Screws - 4020513002K
Meter Socket Cover (ringless type, one position) - MMRC
Blank Meter Socket Cover - MMCBK
Pull Box Cover - MP56200PC
Line Phase and Neutral Lugs - MMLK500
Alternate Lug Kits - Refer to Digest
Load Neutral and Service Ground Lugs Assembly: 7329704352 (includes connector and four lugs - used on the LEFT side of the pull box)
Load Neutral and Service Ground Lugs Assembly: 7329704353 (includes connector and three lugs - used on the RIGHT side of the pull box)
Mounting Screws: (1) 21427-20163 and (3) 2142717120 (needed for each assembly)
Equipment Ground Lugs Assembly: 7329704452 (includes mounting bracket and two lugs - used on the LEFT side of the pull box)
Equipment Ground Lugs Assembly: 7329704451 (includes mounting bracket and three lugs - used on the RIGHT side of the pull box)
Mounting Screws: (4) 2142217101 (2 required for each assembly)
Parts Kit (one position, meter socket line side through tenant breaker base, does not include horn bypass kit) - MP200KIT
Horn Type Bypass Kit - MMHB
Mounting Channel - 7329652101
Released for: Schneider Electric USA
