Product Line:

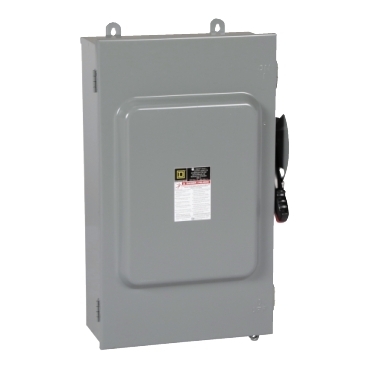

Heavy Duty Safety Switch H364NAWK, Series F5

Resolution:
The repair parts for the H364NAWK, series F5 (F05) are as follows. No other parts are available.
Complete Line Base - 4056703550 (1 required; includes phenolic base, arc suppressors, lugs, rotor, switching blades, and fuse clips if applicable)
Line Base mounting screws - 4020546401 (6 required per line base)
Load Base Assembly - 4056678250 (1 required per phase; includes phenolic base, lugs, and fuse clips)
Load Base mounting screws - 4020546401 (2 required per load base)
Arc Suppressor Assembly - 4056677550 (1 required per phase)
Arc Suppressor mounting screw - 4020514501
Lug Assembly - CL20F (includes 6 lugs; requires mounting screws)
Lug Assembly mounting screw - 2140122240 (per lug)
Switch Mechanism - 4056678650 (also requires interlock shaft gasket 40567-860-01)
Switch Mechanism mounting screws- 2299940562 (2 required)
Handle Assembly - 4056663550 (requires handle gasket 40566-031-01)
Lockplate - 4056672101
Lockplate mounting screws - 2299940562 (2 required)
Neutral Assembly - SN20C
Neutral Bonding Screw - 4028356651

Released for:Schneider Electric USA
