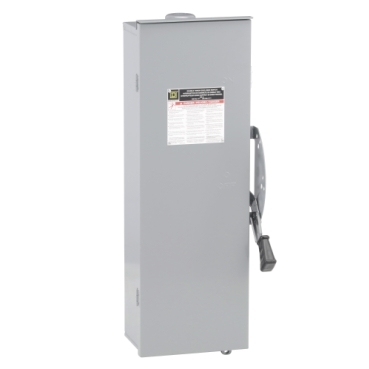

What are the repair parts for the DTU223RB, series F5? (may be shown as F05)

Product Line:
Double Throw Safety Switches

Resolution:
The repair parts for the DTU223RB, series F5 (F05) are as follows. No other parts are available.
-Line Base - 4056683850 (one each upper and lower; order arc suppressor, load lugs, and wire assembly separately)
-Line Base mounting screws - 4020515101 (3 required per line base)
-Arc Suppressor Assembly - 4056635550 (1 required per line base)
-Arc Suppressor mounting screw - 4020514501 (1 required per arc suppressor)
-Wire Assembly - 4056780050 (1 required per phase; includes cable factory connected mechanical lug at one end and a crimped connector at other end; use lug mounting screws)
-Line and Load Lug Assembly - 4025101851 (per lug)
-Line, Load Lug mounting screw - 4020514202
-Ground Lug - 4025101851 (per lug)
-Ground Lug mounting screw - 4020514801
-Switch Mechanism - 4056646950 (each for upper and lower)
-Linkage Assembly - 4056682750
-Linkage Assembly Rubber Gaskets - 4050322801 (3 total required)
-Linkage Assembly mounting screws - 2299940562 (7 required)
-Handle - 4056688750 (handle gasket also required)
-Handle gasket - 4056608601
-Lockplate - 4056673301 (lockplate gasket required)
-Lockplate mounting screws - 2299940562 (2 required)
-Lockplate gasket - 4056608601 (1 required)
