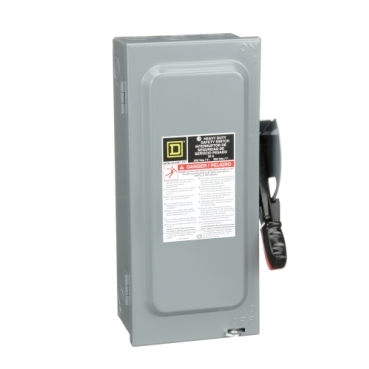

What are the repair parts for the H221N, series F5? (may be shown as F05)
Product Line:
Heavy Duty Safety Switches
Resolution:
The repair parts for the H221N, series F5 (F05) are as follows. No other parts are available.
Line Base Assembly -4056642250 (1 required; arc suppressor assembly not included)
Load Base Assembly - 4056641050 (1 required)
Arc Suppressor Assembly - 4056001801 (1 required)
Lug Assembly - 4025101652 (per lug)
Switch Mechanism - 4056610750
Handle Assembly - 4056684150K
Lockplate - 4056637601
Neutral Assembly - SN03
Neutral Bonding Screw - 4028365650
Line & load base mounting screw - 4020516001 (3 required for line; 2 required for load base assemblies)
Arc suppressor mounting screw - 4020514501 (1 required)
Lockplate mounting screw - 2299940562 (2 required)
Cover latch and spring - one each of 4056607201 (latch) and 4022304301 (spring)
Released for: Schneider Electric USA
