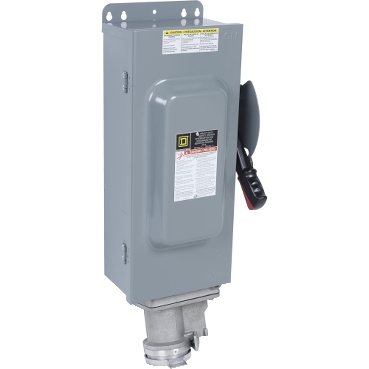

What are the repair parts for the H363AWC, series F5 (may be shown as F05)?
Issue:
Repair parts list for H363AWC, series F5

Product Line:
Safety Switches

Resolution:
The repair parts for the H363AWC, series F5 (F05) are as follows. No other parts are available.
-Line Base Assembly - 4056614250 (1 required; arc suppressor assembly not included)
-Load Base Assembly - 4056614550 (1 required)
-Line and Load Base Mounting Screw - 4020515101 (3 for line & 2 for load)
-Arc Suppressor Assembly - 4056635550 (1 required) (obsolete, no longer available, replaced by NNZ51874)
-Arc Suppressor Mounting Screw - 4020514501
-Handle/Mechanism kit - HMR10FN12 (includes handle, mechanism, rod, and lockplate)
-Lug Kit - CL10F (includes all line and load lugs)
-Receptacle - 2541002295
-Receptacle Mounting Screws - 4510280101 (4 required)
