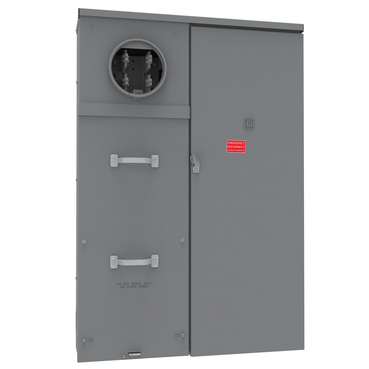

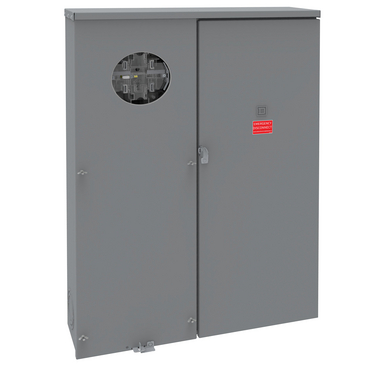

What are the repair parts for QO 400A CSED, Series M00?
Issue:
Previous design repair parts
Product Line:
Combination Service Entrance Devices
Resolution:
NOTE: WIRING DIAGRAMS AND LABELS ARE NOT INCLUDED ON THE PARTS LISTED BELOW
Only the parts listed below are considered field replaceable.
For all QO catalogues (QU816D400P**, CU816D400P**):
| Item Description | Part Number |
|---|---|
| Load Center Cover | 40562-589-50 |
| Load Center Cover Mounting Screws | (3) 21422-17101 |
| Mounting Channel | 73294-238-01 |
| Factory Installed Main Breaker | QDL22200 |
| Kit Assy Lug Mounting | MTR16801 |
| Load Center Interior (QO) | MTR16488 |
| Mounting Interior Bracket (QO) | MTR16404 |
| Bus Supports (QO) | (4) 60128-015-01, (4) 60128-290-02, (4) 21427-17161, (4) 21427-17240 |
| Load Center Interior Mounting Screws (QO) | (4) 21427-20140 |
| Interior Loadcenter Deadfront Trim (QO) | MTR16402 |
| Field Installed Deadfront Trim (QO) | MTR16399 |
| L/C COVER | 40562-504-50 |
For all QO catalogues with suffix N or B:
| Item Description | Part Number |
|---|---|
| Meter Cover | 40562-506-50 |
| Meter Cover Insulator | 40561-382-02 and Rivets (2) 24303-13190 |
| Meter Cover Mounting Screw | 40205-130-01 |
| Utility Pullbox Cover | 40562-328-01 (handles not included) |
| Utility Pullbox Cover Handles | (2) 29401-01103 and Rivets (8) 24303-15290 |
| Utility Pullbox Cover Mounting Screws | (2) 40205-130-01 and Sealing Screws (3) X1299 |
For all QO catalogues with suffix SL, SL150 and CL.
| Item Description | Part Number |
|---|---|
| Wing Nuts | 23501-02000 |
For all QO catalogues with suffix SL and SL150.
| Item Description | Part Number |
|---|---|
| Cover Assembly | 40562-647-50 |
For QU816D400PCL catalogue:
| Item Description | Part Number |
|---|---|
| Ringless Meter Cover | 40562-360-50 |
Released for: Schneider Electric USA
