Issue
How to add a '.dat' formatted loadable t 'ProWORX NxT'

Product Line
'ProWORX NxT'

Environment
Windows 7, 10

Resolution
The following steps can be used to add a custom loadable (e.g. EUCA loadable, etc.) that is in the form of '.dat' to
a '.ProWORX NxT' project.

• Click on 'Configuration\Configuration'.

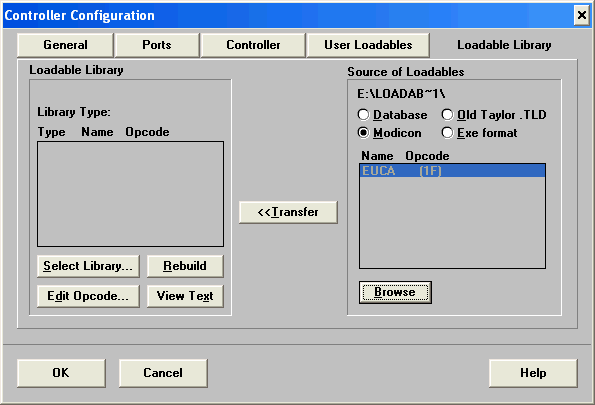

• Click on the 'Loadable Library' tab.
• Select 'Modicon' in the 'Source of Loadables' section of the 'Loadable Library' tab.
• Click on Browse:

• Select the 'EUCA-8.dat'.
• Click on OK

• Click on Transfer.

• Browse for the 'PROWORX.USL'.
• Click on OK.

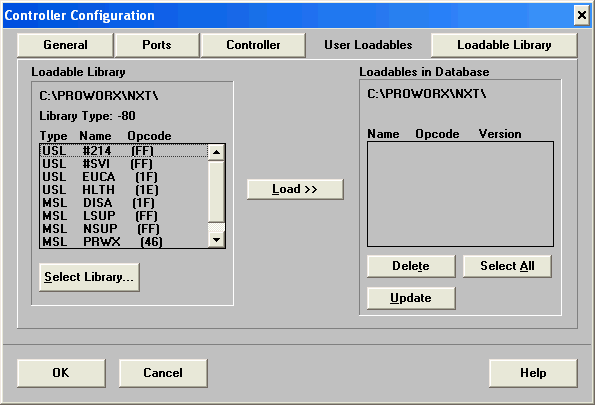

• Click on the "User Loadables' tab.
• Select the 'EUCA' loadable to select it..
• Click on the 'Load' button to add the loadable into the project database..
• Click on 'OK' to close the 'Controller Configuration' window.
