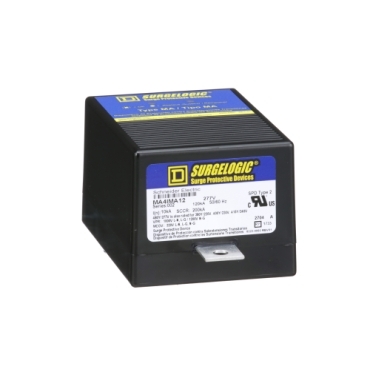

Surge protection module, Surgelogic, MA, 120kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2
MA4IMA12
Discontinued on: Dec 31, 2025
- What does the end of commercialization mean ?
End of commercialization is the last date Schneider Electric will accept an offer for this reference. However, after Sales Services (repair, spare parts, etc.) will continue until its end of life.
- Need more help
Contact Customer Care Center - available 24 a day.
Product availability: Non-Stock - Not normally stocked in distribution facility
Surgelogic™ provides high performance surge suppression even in severe electrical conditions
Externally mounted replacement module design allows for fast, easy service or replacement
Noise filtering as well as transient surge suppression
Fusing uses Thermal Cut-Off circuitry to isolate the SPD during severe overvoltages
Complies with UL 1449 and 1283 and CSA C22.2
Environmental Data
Environmental Data
Total lifecycle Carbon footprint
2 782 kg CO2 eq.
Use Better
Packaging made with recycled cardboard
Recycled cardboard content is minimum 70% (50% in US). Some orders may include non-recycled cardboard until stock runs out.
No
Use Again
Take-back
Whether the product has been included in a global take-back program. Some products are eligible in some geographies, please verify if it's available in your country.
No
MA4IMA12 may be replaced by any of the following products:
