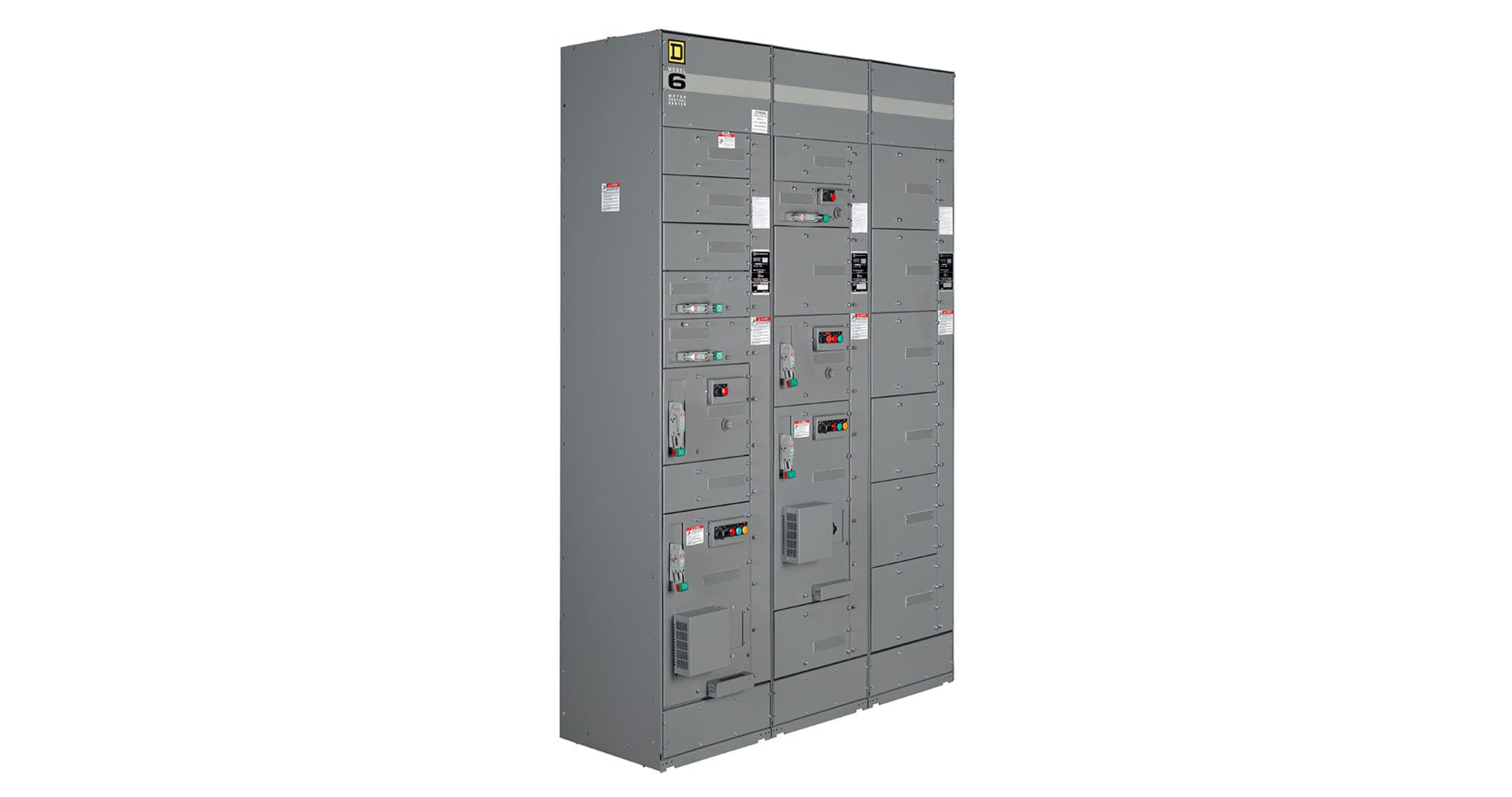

Model 6 AR (Arc Resistant)

The arc resistant MCC minimizes potential for personnel injury by containing and redirecting arc energy out the top of the MCC. This and other features make the Model 6 AR the leading arc resistant MCC on the market.

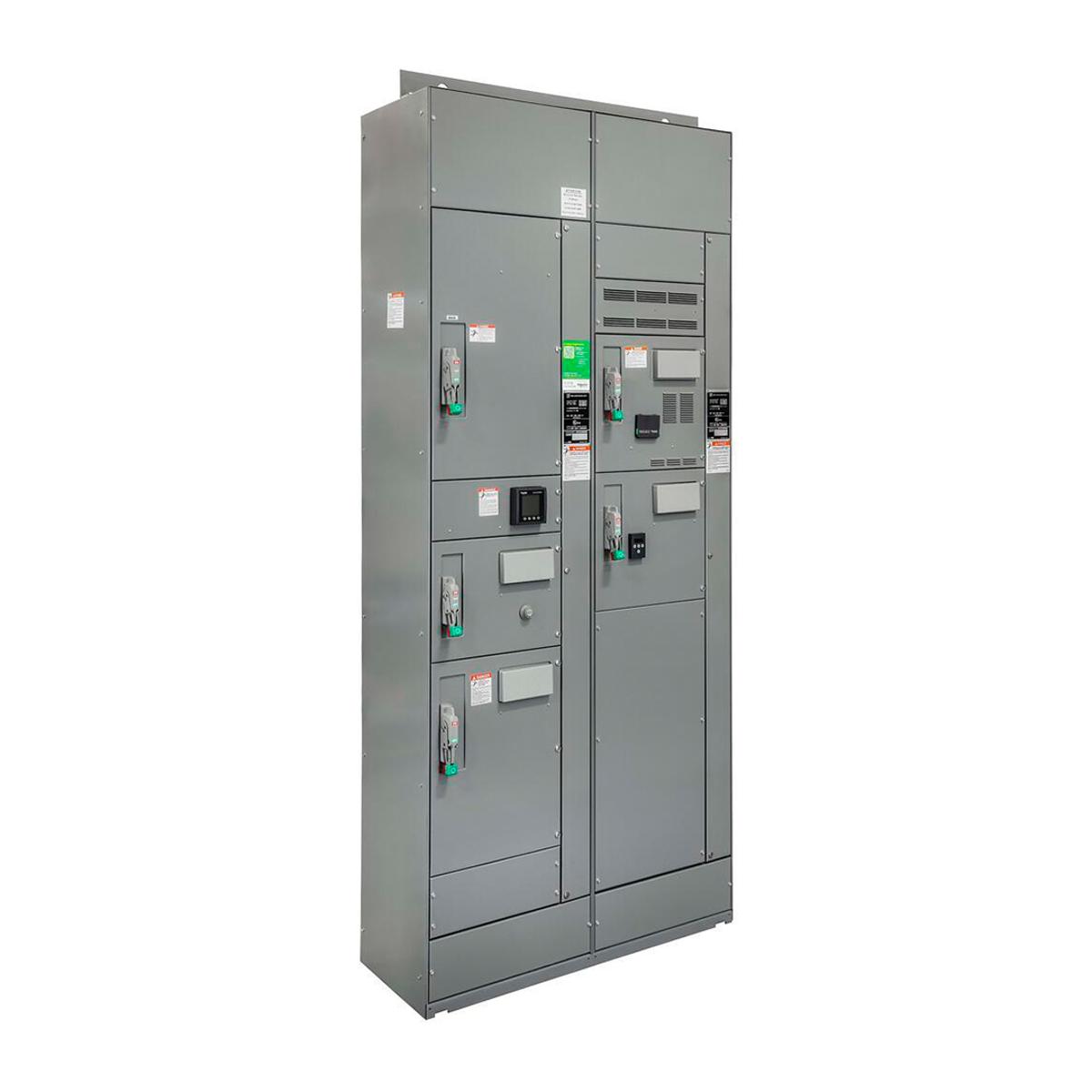

Energy Reduction Maintenance Setting (ERMS)

Schneider Electric has developed a method to temporarily reduce the instantaneous pickup setting of the circuit breaker using an Energy Reduction Maintenance Setting (ERMS) switch.

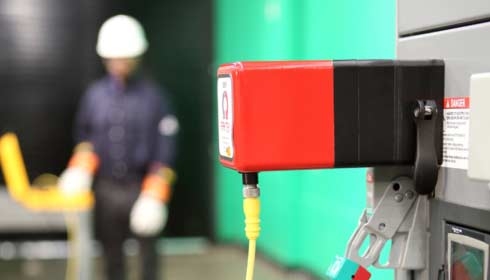

Closed Door Racking (CDR)

The CDR allows workers to rack out circuit breakers from the vertical bus without opening the door. A remote option enables workers to operate the racking device outside of the arc flash zone.
  • Arc Flash Mitigation in MCCs

    Square D™ Model 6 motor control center safety

    See the latest features designed to reduce or eliminate arc flash incidents.

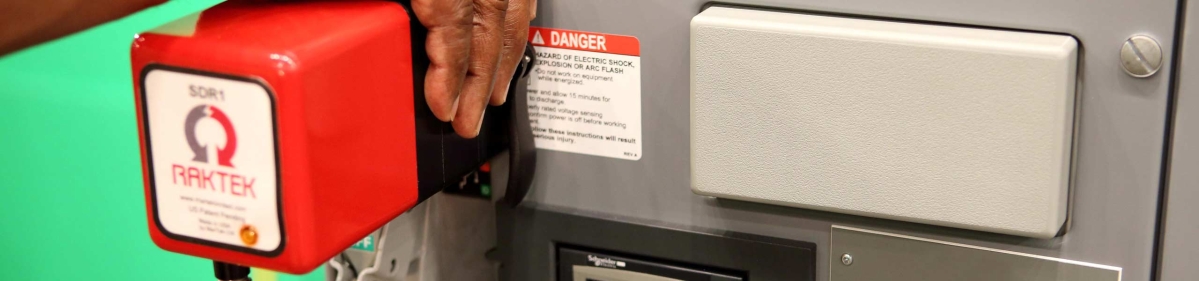

  • Remote Racking Option

    For Square D™ motor control centers

    Learn about the remote racking option available for our Model 6 motor control center.

+

1. Roof and Bus

  • Optional plenums
  • Optional UL rated insulated bus
+

2. Vented Mid-Shelf

  • Optimized for heat dissipation
+

3. Door Brackets and Flanges

  • Added top and bottom brackets
  • Added Fast-Lead brackets
  • Added sealing flanges
+

4. Vented Arc Filter

Variable frequency drive filter box allows for ventilation and arc blast containment

+

5. Robust Hardware

  • More fasteners
  • Fast Lead fasteners
+

6. Reinforced Structure

  • 12-Gage steel structure
  • Reinforced door hinge
  • Metal control stations
+

7. Added Safety Features

  • Comms for remote access (iMCC)
  • Infrared windows
  • Vertical bus auto-shutters
  • Shrouded unit stab assemblies
  • Horizontal barriers
  • +

    1. Roof and Bus

  • +

    2. Vented Mid-Shelf

  • +

    3. Door Brackets and Flanges

  • +

    4. Vented Arc Filter

    Variable frequency drive filter box allows for ventilation and arc blast containment

  • +

    5. Robust Hardware

  • +

    6. Reinforced Structure

  • +

    7. Added Safety Features
